Installing Upper Trailing Arm

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

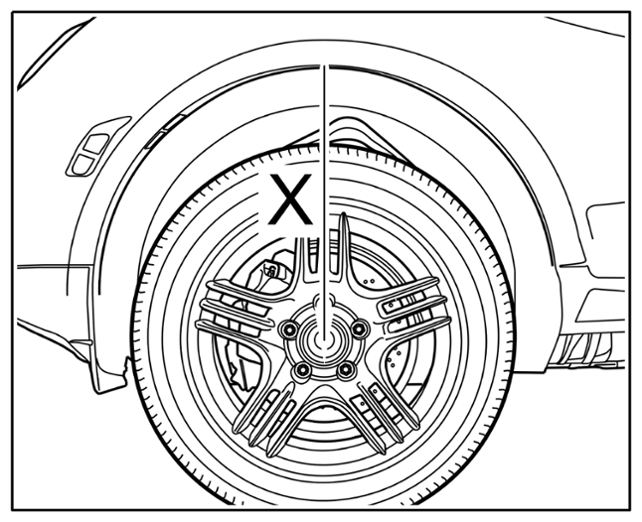

Dimension -X-  : lower edge of wing to centre of axle (shown as an example)

• All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle resting on its wheels, or the wheel suspension is lifted with a universal jack. -Dimension X- from lower edge of wing to centre of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment

  > 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .

• Visually inspect all parts.
• Replace self-locking nuts.
• Replace all expansion screws (screws fitted using torque angle tightening procedure).
• Use correct tightening torques and torque angle.

  > Refer to the appropriate Tightening Torques For Front Axle service information

Information

The dimension is measured as follows:

• Always check the installation dimension when installing the upper axle support.
• Centre of ball joint (upper side)
• To the lower double panel (panel closest to the control arm)

1. Fit axle support -2-  and screw in fastening screws -1-  .

   > Refer to the appropriate Tightening Torques For Front Axle service information

   The ball joint pin must be pointing downwards.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

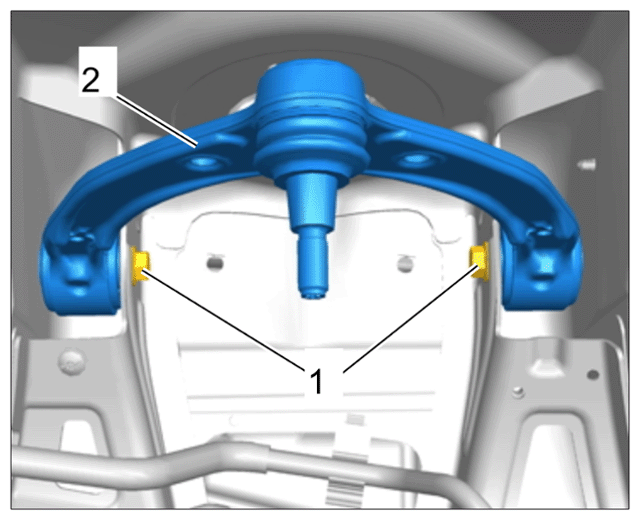

   Fastening screws for upper axle support

2. Always check that the upper axle support is fitted in installation position.

   Installation position dimension -X-  : > Length 118.5 mm +/- 6 mm

   • Upper side of ball joint -1-
   • Double panel -2-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

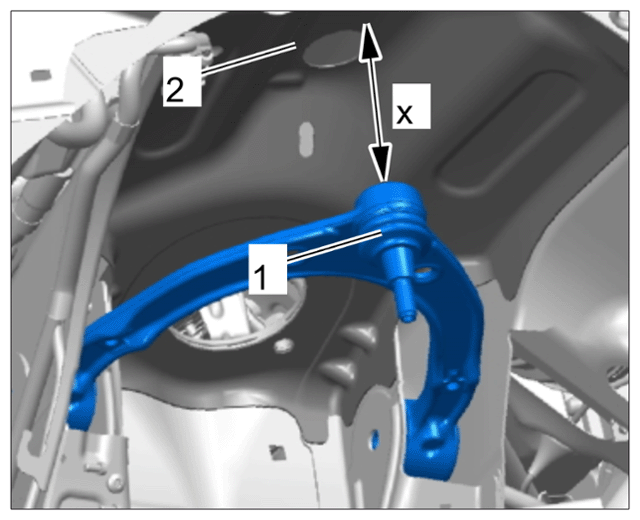

   Installation position of upper trailing arm

3. Fit level sensor holder on upper axle support.

   > 431855 Replacing front level sensor - section on "Installing "

4. Clip in ABS wire harness -1-  at the body -A-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

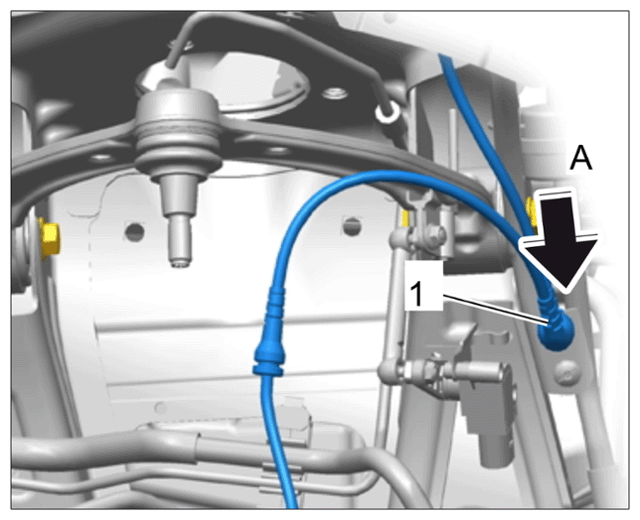

ABS wire harness on body
