Tool overview for chassis subframe bearings > T10301 - assembly fixture

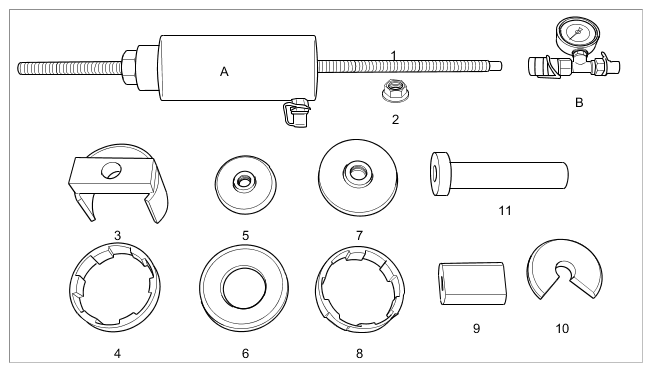

Tool overview for chassis subframe bearings
| A | > VAS 6178 - Hydraulic cylinder (The hydraulic cylinder is used together with the > VAS 6179 - foot pump and the > VAS 6179/1 - pressure gauge with connecting cable-B- .) |
| 1 | Threaded rod (Inserted into the tubular piston cylinder -A- .) |
| 2 | Threaded nut (Screwed onto the threaded rod -1- .) |
| 3 | Pipe (For pressing out the chassis subframe bearings.) |
| 4 | Ring (For pressing out the chassis subframe bearings.) |
| 5 | Press-out plate (For pressing out the chassis subframe bearings.) |
| 6 | Thrust piece (For pressing in the chassis subframe bearings.) |
| 7 | Press-in plate (For pressing in the chassis subframe bearings.) |
| 8 | Ring (For pressing out the chassis subframe bearings.) |
| 9 | Spacer sleeve (For pressing out the chassis subframe bearings together with pipe -3- .) |
| 10 | Thrust piece (For pressing in the chassis subframe bearings.) |
| 11 | Spacer sleeve (For pressing in the chassis subframe bearings.) |
> T10301/20 - Porsche supplement set

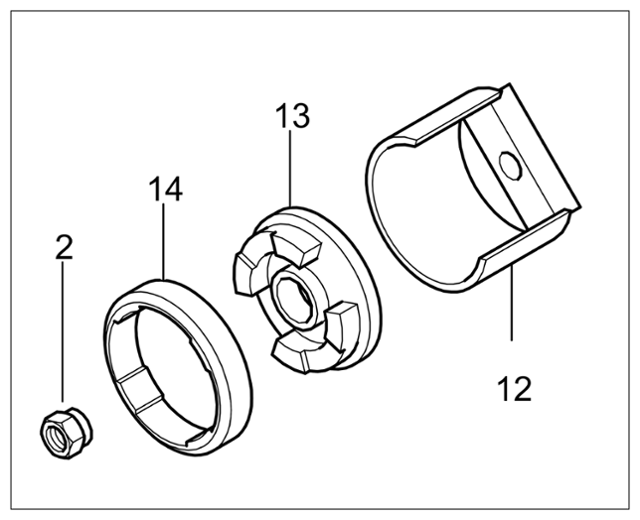

Assembly fixture T10301/20
| 2 | Threaded nut (Screwed onto the threaded rod -1- .) |
| 12 | Press-out ring (For pressing out the chassis subframe bearings.) |
| 13 | Pressure piece (For pressing in the chassis subframe bearings.) |
| 14 | Bush (For pressing out the chassis subframe bearings.) |
