Replacing Bearings For Carrier
WARNING: This page is about a different variant/trim than selected.
Information
If a suspension subframe bearing is replaced, the other bearings must also be checked for cracks or other signs of damage.
- Loosen the anti-roll bar from the connecting link on both sides. (Do not loosen the anti-roll bar for the rear front-axle bearings!)

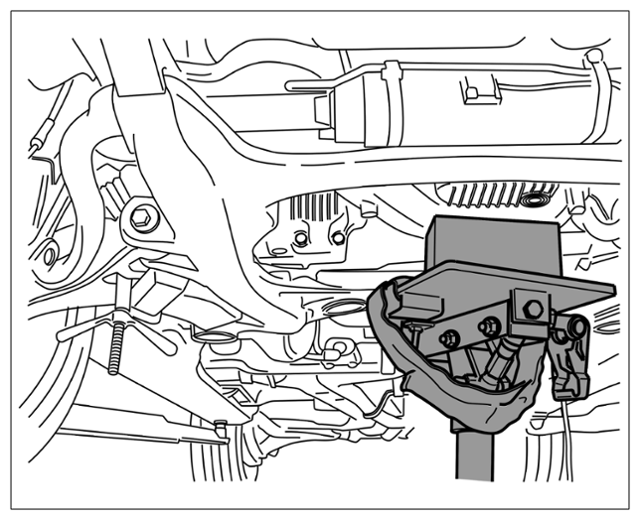

- Move the gear support under the engine transverse bar and lift it slightly using a suitable base (e.g. hard rubber support). (The gear support is not needed for the rear front-axle bearings).
Positioning the lift

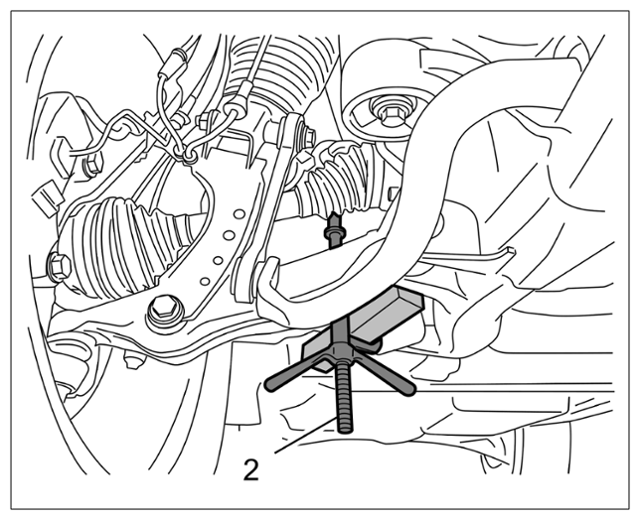

- Engage the spindle at the eyelet on the engine transverse bar at the side where you want to replace the bearing. Guide the spindle through the lower trailing arm and tighten the spindle slightly so that the spindle is slightly tensioned.
Fitting spindle
- Loosen the suspension subframe bearing on both sides, carefully lower the gear support (loosen the spindle carefully at the same time) until you get the clearance needed for using the press-out tool.
- Press out suspension subframe bearing.

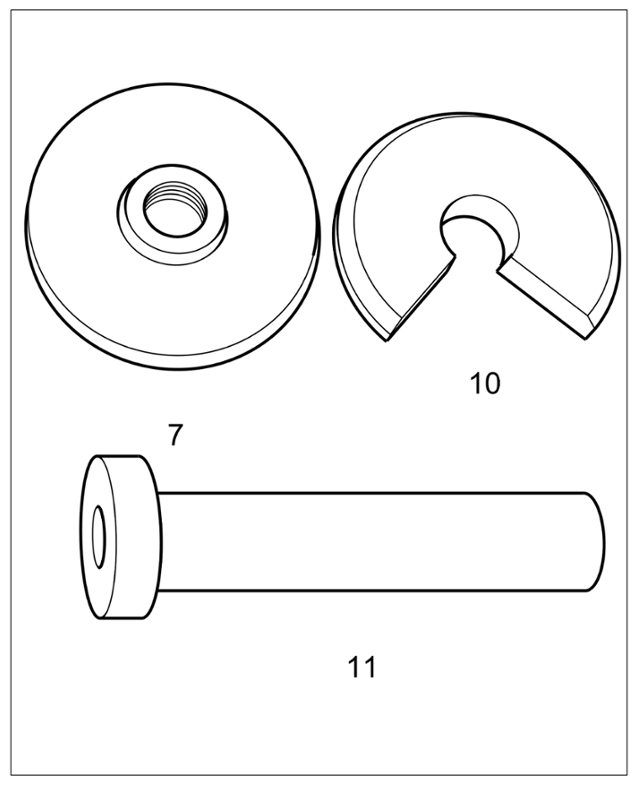

Tools for pressing out front-axle bearings at the front
Information
Hold the hydraulic cylinder VAS 6178 tightly while pressing it out.

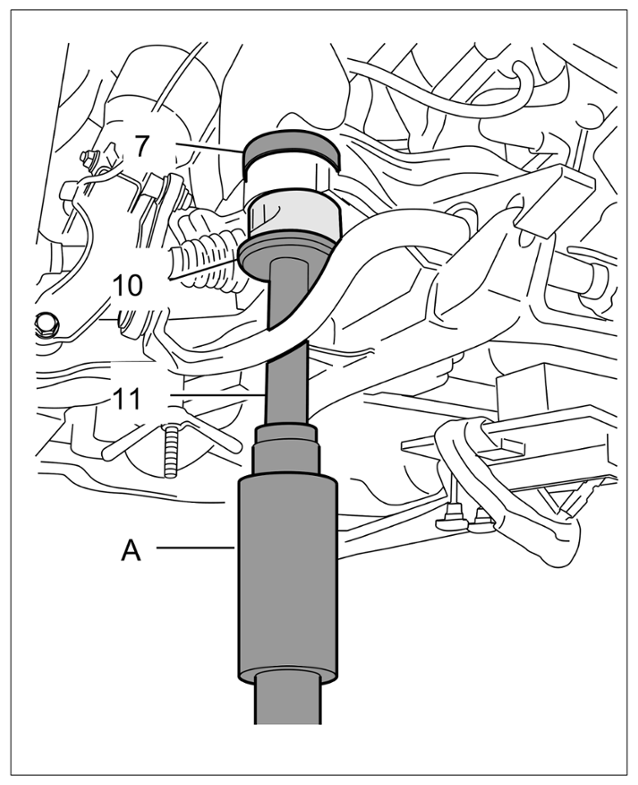

- Attach the tools as shown and press out the bearing.
Pressing out front-axle bearing at the front
Information

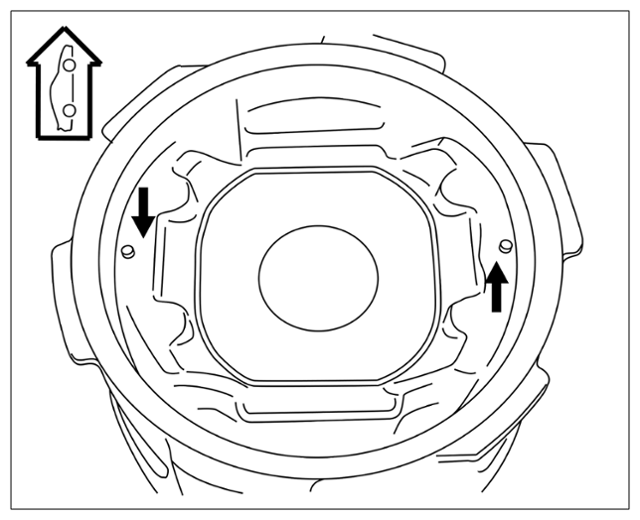

When replacing bearings, please make sure that one arrow is pointing in the direction of travel while the other arrow is pointing away from the direction of travel.
- Fit suspension subframe bearing and check installation position.
Marking on suspension subframe bearing
- Press in suspension subframe bearing. To avoid damaging the bearing, the maximum > Pressure 10 kN +/- 5 Sekunde
must not be exceeded at the stop (10 kN = 350 bar). This conversion only applies to > VAS 6178 - hydraulic cylinder
. The conversion depends on the diameter of the relevant cylinder.

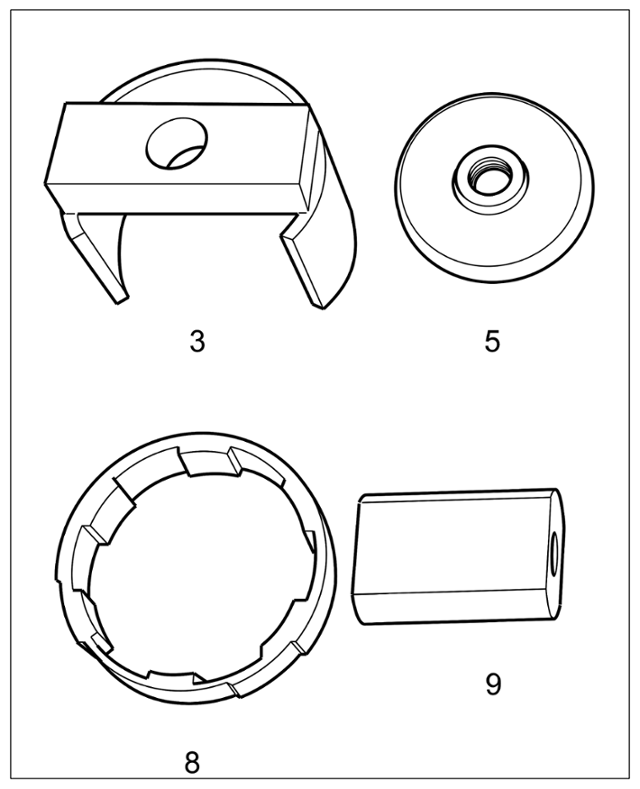

Tools for pressing in front-axle bearings at the front

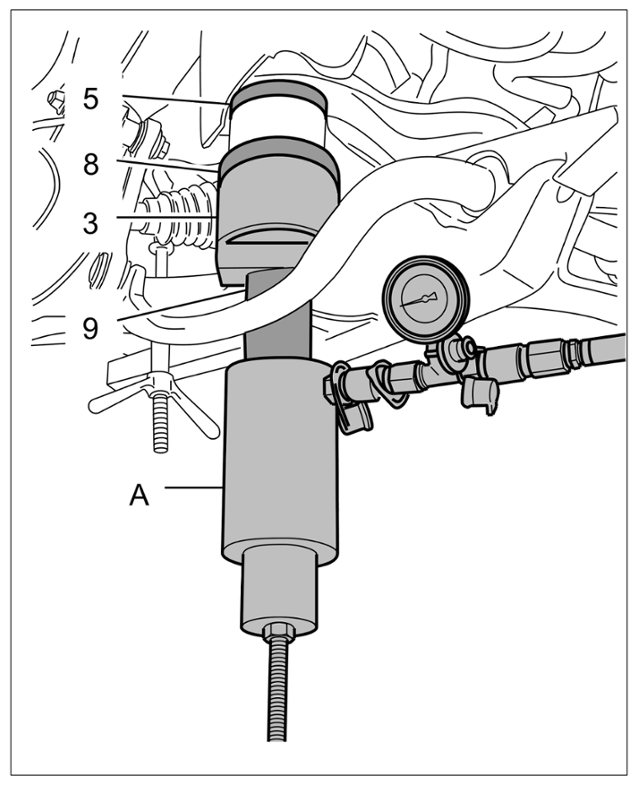

- Attach the tools as shown and press in the bearing.
Pressing in front-axle bearing at the front
Information
Observe correct tightening torques.
- Carefully lift the chassis subframe until installation position is reached. Fit threaded joint on chassis subframe bearing.
- Fit anti-roll bar on the connecting link.
- Remove the spindle.
