Removing Torque Converter
WARNING: This page is about a different variant/trim than selected.

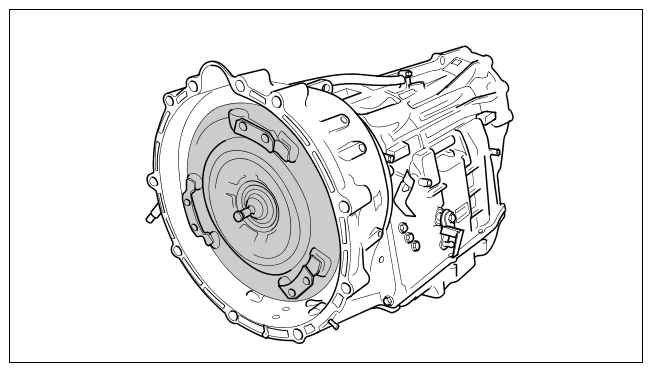

Torque converter
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
- Place oil collection pan under the converter bell housing.
Information
- ATF can leak out when removing the torque converter.
- Place torque converter with transmission side pointing upwards.
- Remove torque converter from the transmission shaft.
