Temperature Sensor
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

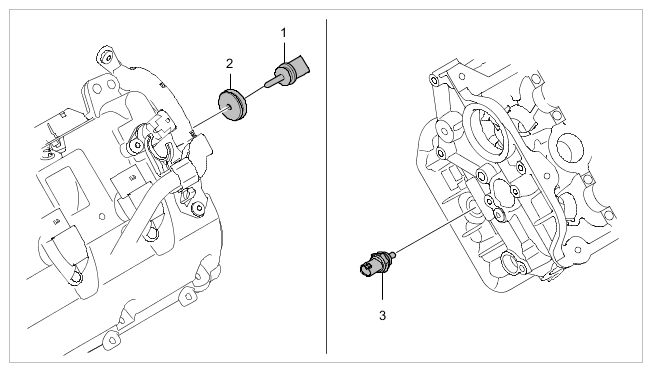

Temperature sensor
TIGHTENING TORQUE SPECIFICATIONS
| 1 |
Temperature sensor for engine compartment (installation position of cylinder 8) |
| 2 |
Grommet |
| 3 |
Temperature sensor (installation position of cylinder 4) > Tightening torque 30 (22 ftlb.) Nm
