Engine Wire Harness, Inner V And Valve Cover

WARNING: This page is about a different variant/trim than selected.

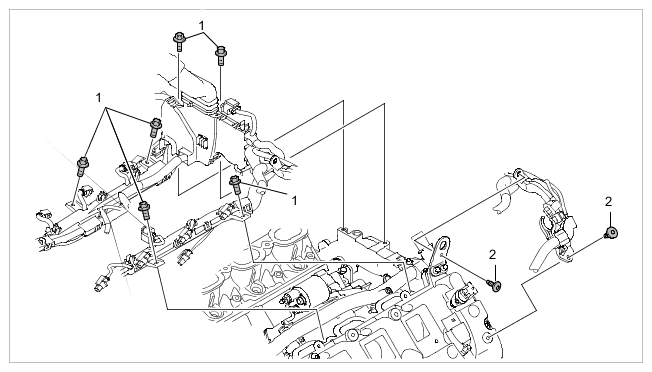

Fig 1: Engine Wire Harness, Inner V And Valve Cover Components Location With Torque Specifcation

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine wire harness, inner V and valve cover

TIGHTENING TORQUE SPECIFICATIONS

1	Screw, M6 x 16 > Tightening torque 12 (9 ftlb.) Nm -- dang --
2	Aluminium screw. M6 (wire harness to valve cover and eyelet) > Initial tightening 4 (3 ftlb.) Nm -- dang -- and > Final tightening 90° -- dang --
