Engine Wire Harness For Timing Case, Valve Cover And Sides

WARNING: This page is about a different variant/trim than selected.

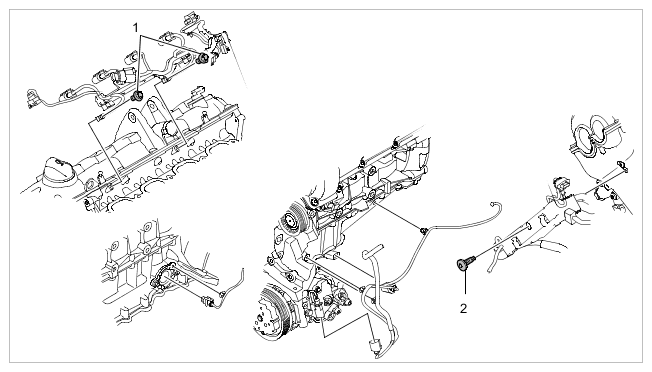

Fig 1: Engine Wire Harness For Timing Case, Valve Cover And Sides Components Location With Torque Specifcation

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine wire harness for timing case, valve cover and sides

TIGHTENING TORQUE SPECIFICATIONS

1	Screw, M6 x 12 > Tightening torque 12 (9 ftlb.) Nm -- dang --
2	Aluminium screw. M6 (wiring harness to chain housing cover) > Initial tightening 4 (3 ftlb.) Nm -- dang -- and > Final tightening 90° -- dang --

Wire harness assignment, naturally aspirated engine

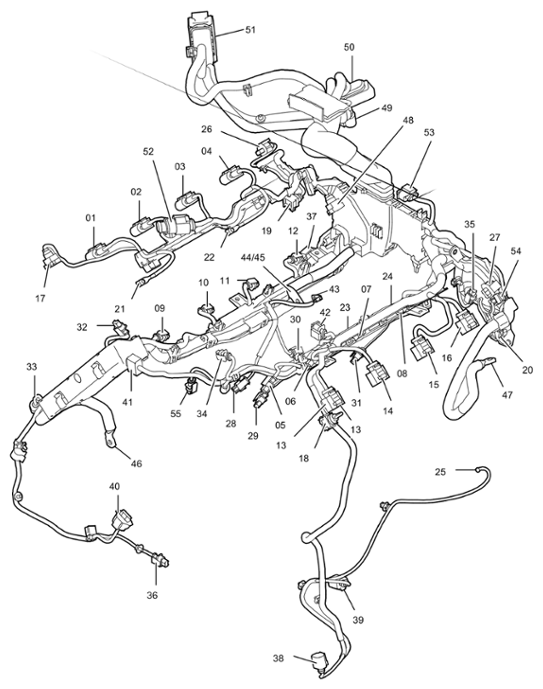

Fig 2: Wire Harness Assignment Components Location - Naturally Aspirated Engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness assignment, naturally aspirated engine

1	Bar ignition module, cylinder 1
2	Bar ignition module, cylinder 2
3	Bar ignition module, cylinder 3
4	Bar ignition module, cylinder 4
5	Injector, cylinder 5
6	Injector, cylinder 6
7	Injector, cylinder 7
8	Injector, cylinder 8
9	Injector, cylinder 1
10	Injector, cylinder 2
11	Injector, cylinder 3
12	Injector, cylinder 4
13	Bar ignition module, cylinder 5
14	Bar ignition module, cylinder 6
15	Bar ignition module, cylinder 7
16	Bar ignition module, cylinder 8
17	Camshaft controller
18	Camshaft controller
19	Hydraulic valve for variable valve-lift control
20	Hydraulic valve for variable valve-lift control
21	Engine ground
22	Engine ground
23	Engine ground
24	Engine ground
25	Speed sender
26	Hall sender (phase sensor)
27	Hall sender (phase sensor)
28	Knock sensor
29	Knock sensor
30	Knock sensor
31	Knock sensor
32	Tank vent
33	Generator
34	Crankcase heating
35	Flow control valve
36	Oil pressure regulating valve
37	Water temperature sensor
38	Air-conditioning compressor
39	Oil level sensor
40	Oil pressure sender with oil temperature sensor
41	Electronic accelerator (throttle adjuster)
42	High-pressure sensor
43	Starter, terminal 50
44	Starter, terminal 30
45	Starter, terminal 30
46	Generator, B+
47	Transfer point on vehicle, B+
48	Intake manifold switch-over valve
49	Vehicle/engine connection point
50	Vehicle/engine connection point
51	DME (DFI) control unit
52	Secondary-air pump
53	Load detection pressure sensor
54	Engine compartment temperature sensor
55	Map-controlled thermostat (electrically heated coolant regulator)
