Air-Conditioning Compressor
WARNING: This page is about a different variant/trim than selected.
Auxiliary units

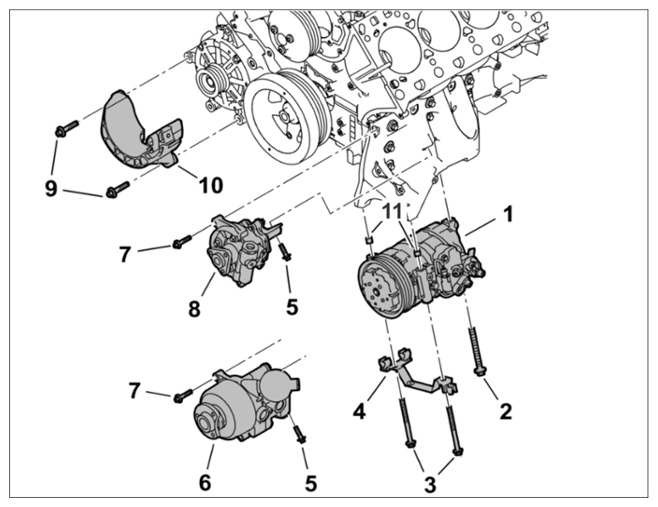

TIGHTENING TORQUE SPECIFICATIONS
| 1 | Air-conditioning compressor |
| 2 | Screw, M10 x 100 > Tightening torque 46 (34 ftlb.) Nm -- dang -- |
| 3 | Screw, M8 x 100 > Tightening torque 23 (7 ftlb.) Nm -- dang -- |
| 4 | holder |
| 5 | Screw, M8 x 20 |
| 6 | Tandem pump |
| 7 | Screw, M8 x 35 |
| 8 | Power-steering pump |
| 9 | Screw, M8 x 35 |
| 10 | Support bracket made of magnesium |
| 11 | Dowel sleeve |
