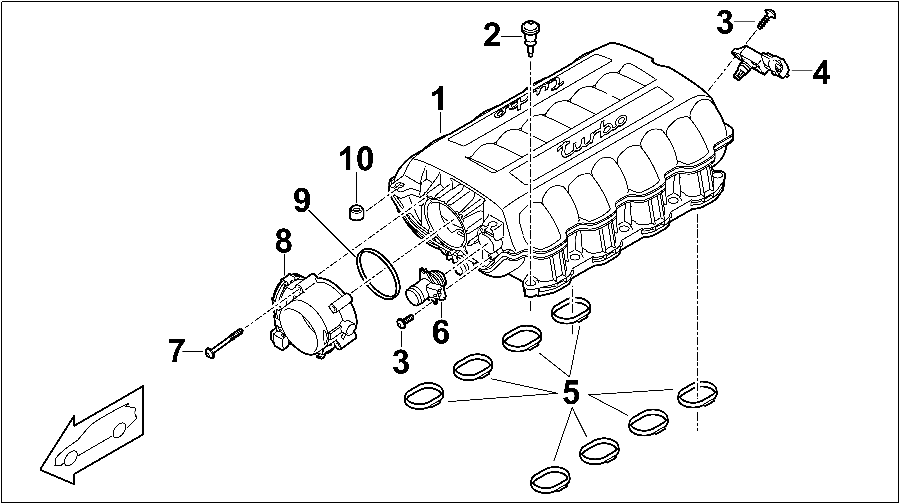

Intake air module on turbo engine
TIGHTENING TORQUE SPECIFICATIONS
| 1 | Intake module |
| 2 | Decoupling module (fastening part): observe tightening sequence > Tightening torque 15 (1 ftlb.) Nm -- dang -- |
| 3 | Screw, 5 x 16 > Tightening torque 4 (3 ftlb.) Nm -- dang -- and > Tightening torque 4 (3 ftlb.) Nm -- dang -- |
| 4 | Pressure sensor |
| 5 | Intake module seal; check that seal is aligned and fitted correctly! |
| 6 | Heat socket |
| 7 | Screw, 6 x 50 > Tightening torque 7 (5 ftlb.) Nm -- dang -- |
| 8 | Electronic accelerator |
| 9 | Seal |
| 10 | Ball socket |
