High-Pressure Pump On Naturally Aspirated Engine, 3-Piston Pump
WARNING: This page is about a different variant/trim than selected.

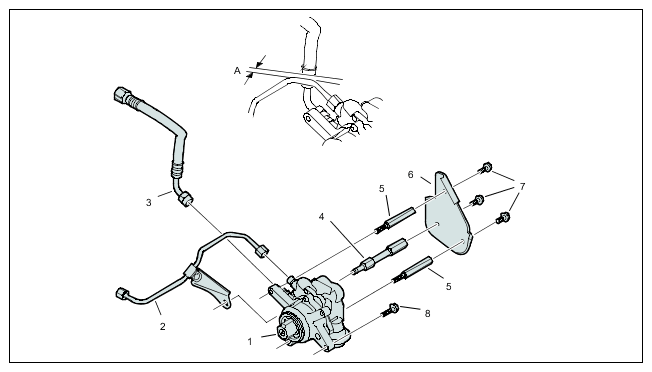

Fig 1: High-Pressure Pump Components Location With Torque Specifcation - Naturally Aspirated Engine, 3-Piston Pump
High-pressure pump on naturally aspirated engine, 3-piston pump
TIGHTENING TORQUE SPECIFICATIONS
| 1 | High-pressure pump |
| 2 | High-pressure line: (3 turns: tighten, loosen, tighten) > Tightening torque 25 (19 ftlb.) Nm -- dang -- |
| 3 | Low-pressure line: (3 turns: tighten. loosen, tighten) > Tightening torque 25 (9 ftlb.) Nm -- dang -- |
| 4 | Screw socket, M8 > Tightening torque 23 (17 ftlb.) Nm -- dang -- |
| 5 | Screw socket, M6 > Tightening torque 10 (7.5 ftlb.) Nm -- dang -- |
| 6 | Protective plate |
| 7 | Screw, M6 x 12 > Tightening torque 10 (7.5 ftlb.) Nm -- dang -- |
| 8 | Screw, M6 x 25 > Tightening torque 10 (7.5 ftlb.) Nm -- dang -- |
| A | Required line distance (5 to 8 mm) between high-pressure line and low-pressure line Temperature sensor: not shown, to low-pressure line > Tightening torque 20 (15 ftlb.) Nm -- dang -- |
