Turbocharger, Cylinders 5 To 8 - Cooling
WARNING: This page is about a different variant/trim than selected.

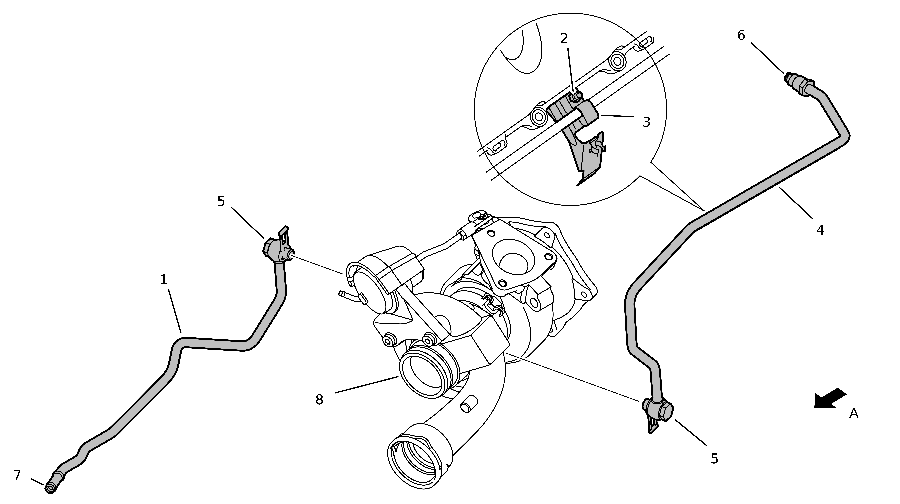

TIGHTENING TORQUE SPECIFICATIONS
| 1 | Coolant supply line for turbocharger, cylinders 5 to 8 |
| 2 | Hexagon nut, M6 > Tightening torque 8.5 (6 ftlb.) Nm -- dang -- |
| 3 | Clamp |
| 4 | Coolant return line for turbocharger, cylinders 5 to 8 |
| 5 | Banjo bolt. M12 x 1.25: coolant supply line to turbocharger > Tightening torque 30 (22 ftlb.) Nm -- dang -- ; coolant return line to turbocharger > Tightening torque 30 (22 ftlb.) Nm -- dang -- |
| 6 | Collection pipe connection > Tightening torque 35 (26 ftlb.) Nm -- dang -- |
| 7 | Connection for coolant supply hose for turbocharger, cylinders 5 to 8 |
| 8 | Turbocharger, cylinders 5 to 8 |
| A | Direction of travel |
