Charge-Air Cooling
WARNING: This page is about a different variant/trim than selected.
TIGHTENING TORQUE SPECIFICATIONS
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Right pressure pipe to charge-air cooler | Screws/Item 3 | Tightening torque | 5.5 (4 ftlb.) Nm | |
|
Right pressure pipe on charge-air cooler |
||||
| Holder for left pressure pipe to cooling fan housing | Screw/Item 7 | Tightening torque | 4.5 (3.25 ftlb.) Nm | |
|

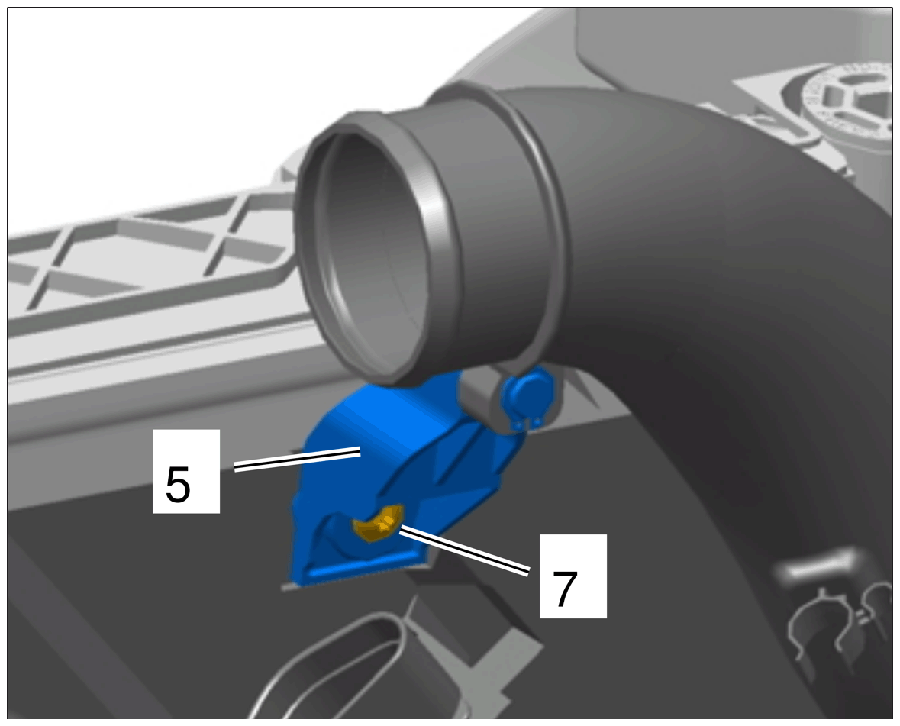

Holder for left pressure pipe on cooling fan housing |
