Carbon Canister
WARNING: This page is about a different variant/trim than selected.
TIGHTENING TORQUE SPECIFICATIONS
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Carbon canister | Screws/Item 2/Also applies to USA variant. | Tightening torque | 9 (6.5 ftlb.) Nm | |
|

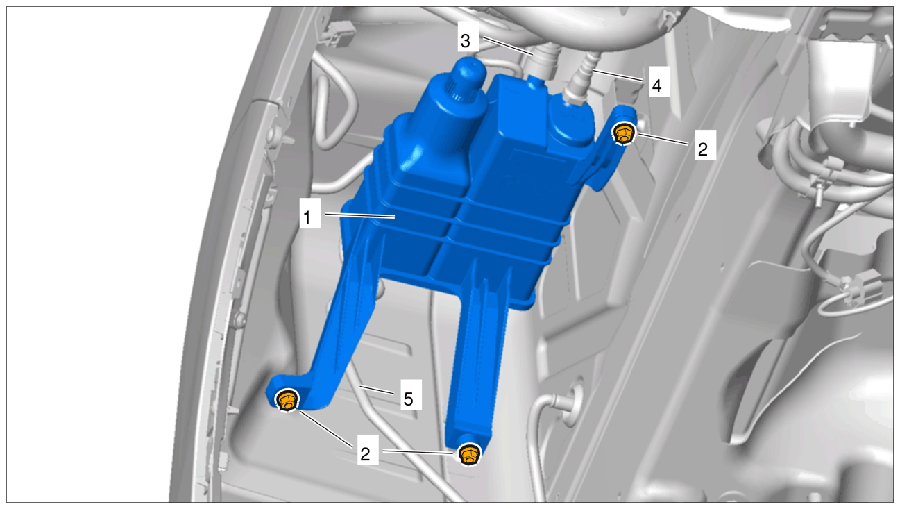

Component overview of carbon canister |
| 1 | Carbon canister |
| 2 | Fastening screws |
| 3 | Thick blue hose |
| 4 | Thin black host |
| 5 | Electric line |
