Removing Sucking Jet Pump

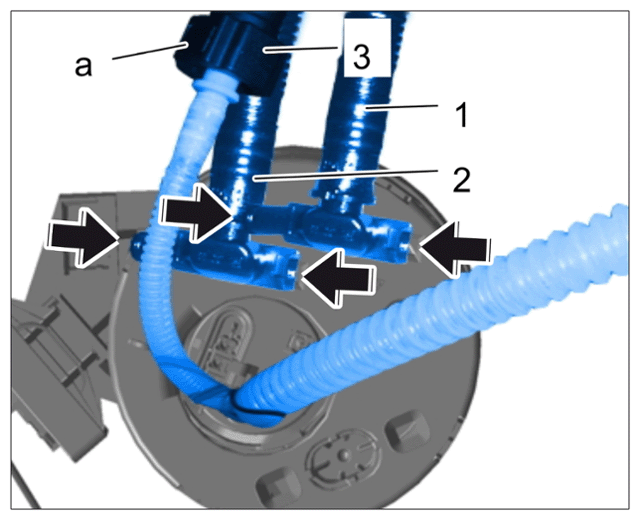

1. Disconnect the sucking jet pump at the fuel pump. To do this, press on the left and right -arrows-  and pull off the connections -1 and 2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sucking jet pump connections at the fuel pump

2. Release connection -3-  and unclip it -a-  .

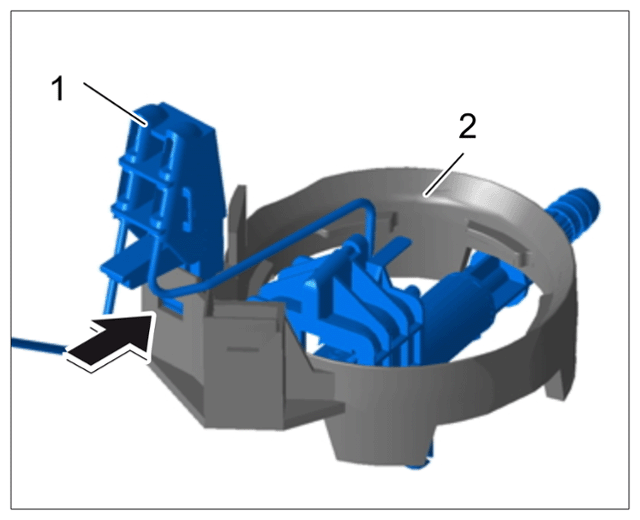

3. Release the sucking jet pump -1-  from the bracket -2-  on the fuel tank floor at the right -arrow-  and unclip it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping sucking jet pump

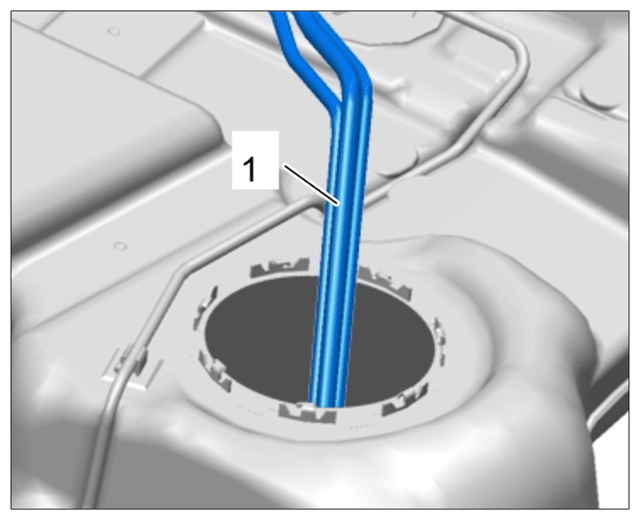

4. Remove the sucking jet pump through the opening in the left connection unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing sucking jet pump
