Installing Leakage Diagnosis Pump (LDP)

WARNING: This page is about a different variant/trim than selected.
  1. Check rubber flange -3-  for damage and replace it if necessary.

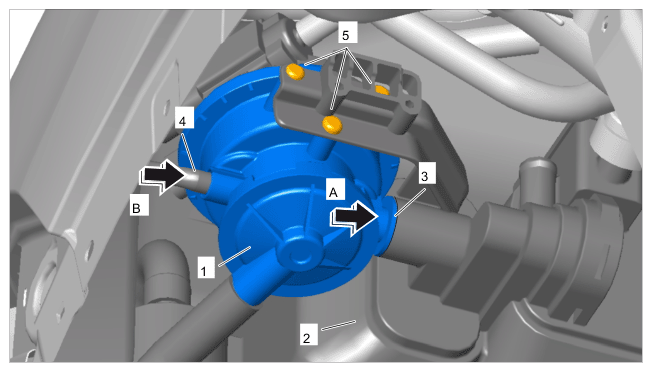

    G16310134Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing leakage diagnosis pump

    1 Leakage diagnosis pump
    2 Carbon canister
    3 Rubber flange
    4 Air hose
    5 Fastening screws
  2. Fit rubber flange -3-  on the connection piece on the leakage diagnosis pump and fit leakage diagnosis pump -1-  on the carbon canister -2-  (-B-  ).
  3. Screw in three fastening screws.
  4. Fit air hose -4-  on the leakage diagnosis pump -1-  (-B-  ).
