Installing Carbon Canister - Row (Rest Of The World)
WARNING: This page is about a different variant/trim than selected.

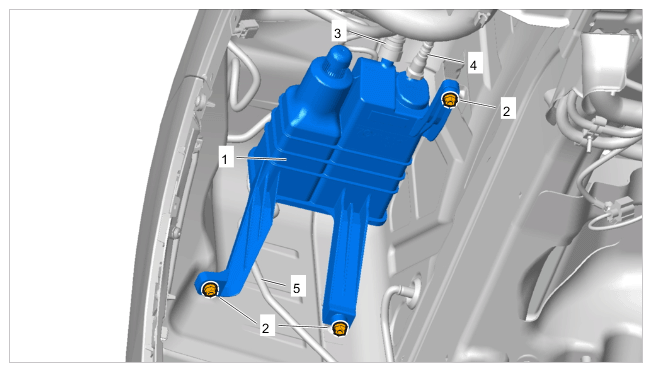

Component overview of carbon canister
| 1 | Carbon canister |
| 2 | Fastening screws |
| 3 | Thick blue hose |
| 4 | Thin black hose |
| 5 | Electric line |
- Clip electric line -5- at the back of the carbon canister into the brackets.
- Attach hose connections -3 and 4- to the carbon canister -1- .
- Tighten three fastening screws -2-
on the carbon canister -1-
.
> Tightening torque 9 (6.5 ftlb.) Nm
