TEQ, 2005 Fuel Tank Cap In Aluminum Look: Parts

Model year

From 2011

Revision:

This bulletin replaces bulletin Group 2, #52/12, dated November 26, 2014.

Concern:

Retrofitting

Restriction:

Not for order type 92AAY1 (Cayenne Diesel) in the markets USA (C02) and Canada (C36).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Parts Info:

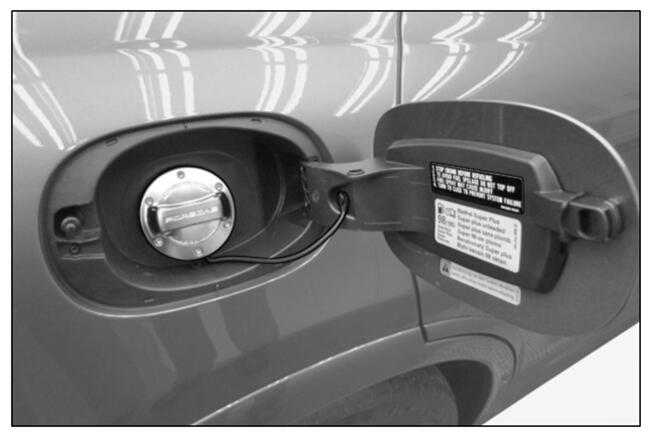

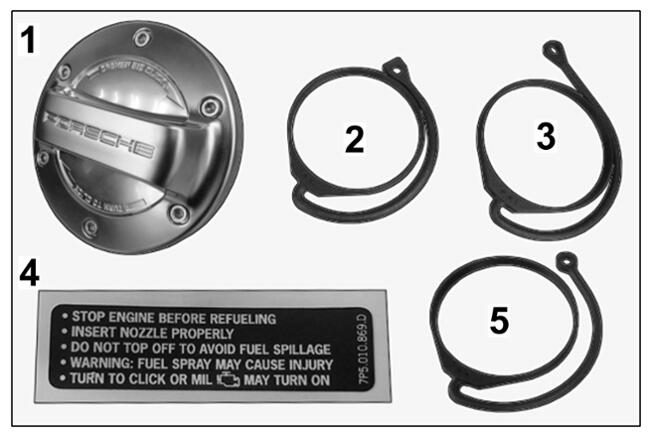

Parts List:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Materials:

Work Procedure:

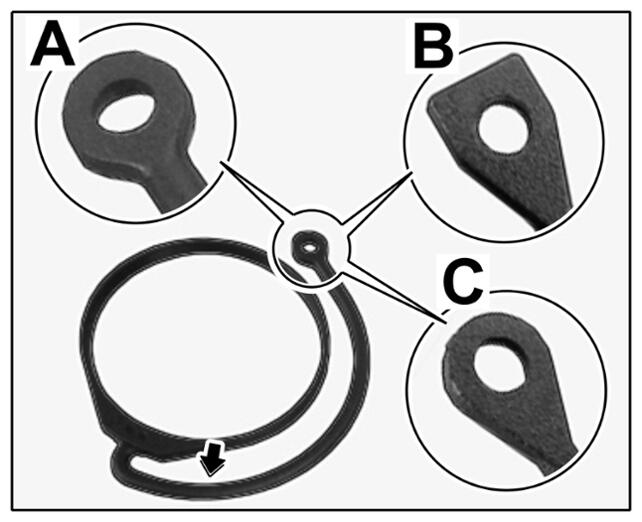

1. The retaining straps are differentiated based on their geometric shape and the part number on the retaining strap.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   A	911, Boxster, Macan (circular)
   B	Panamera (square)
   C	Cayenne (teardrop shape)
   Arrow	Sports Cars: 991..., Cayenne: 7L5..., Panamera: none

2. Fit retaining strap on new fuel tank cap.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

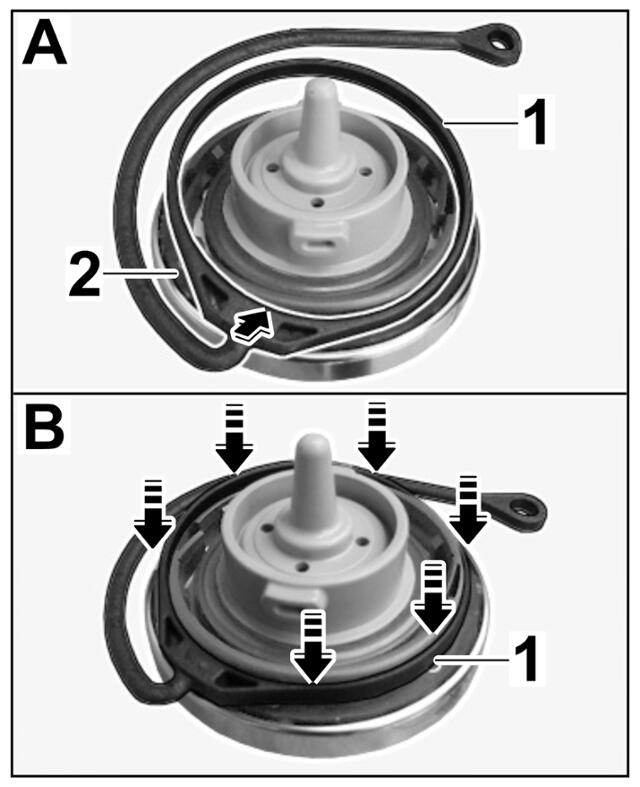

   1. 2.1  Fit retaining strap -1-  into the groove as shown -arrow a-  .
   2. 2.2  Press retaining strap into the groove with your thumb -arrows-  .
      WARNING: Highly flammable or explosive materials

      • Danger of fire or explosion

        → Avoid contact with hot parts or sources of ignition.

        → Use suction to remove ignitable vapors.

        → Attach warning sign in a clearly visible position.

3. Remove old fuel tank cap.
   1. 3.1  Open the filler flap on the vehicle.

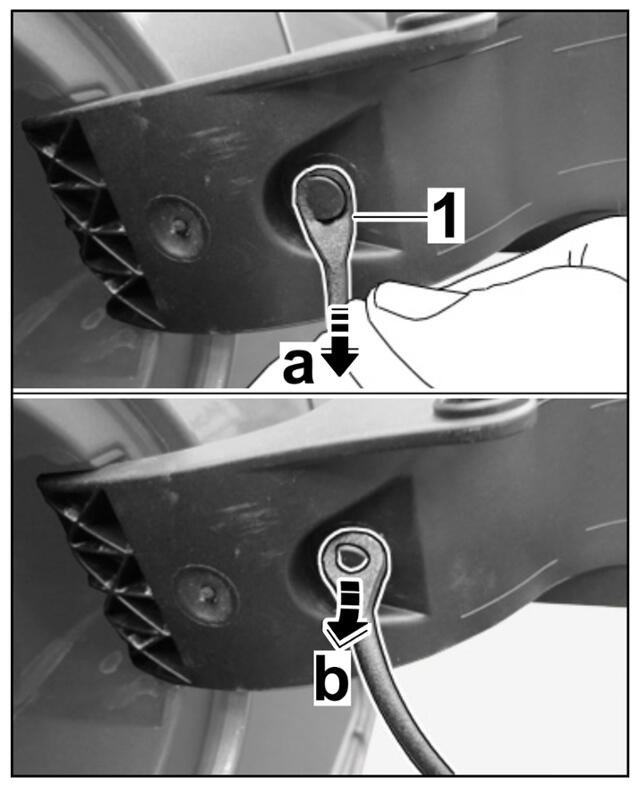

   2. 3.2  Carefully pull the retaining strap -1-  down -arrow a-  and then swivel the ring up over the retaining pivot -arrow b-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   3. 3.3  Unscrew old fuel tank cap from the filler neck.
4. Fit new fuel tank cap on the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

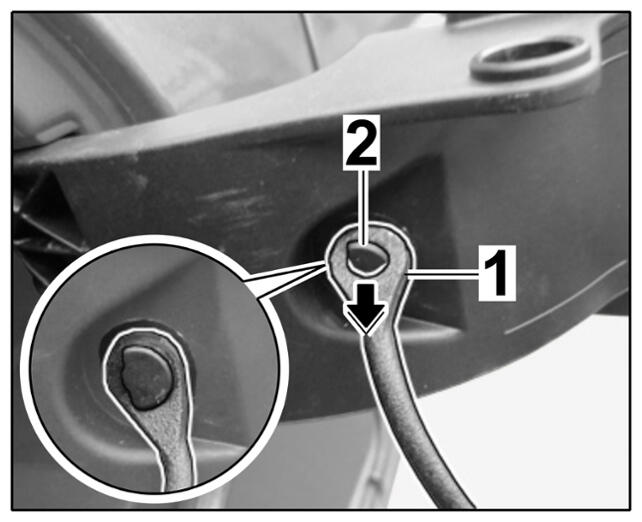

   1. 4.1  Position small ring -1-  on the retaining pivot -2-  , pull it down carefully and guide it over the retaining pivot.
   2. 4.2  Fit new fuel tank cap on the filler neck and screw it on.

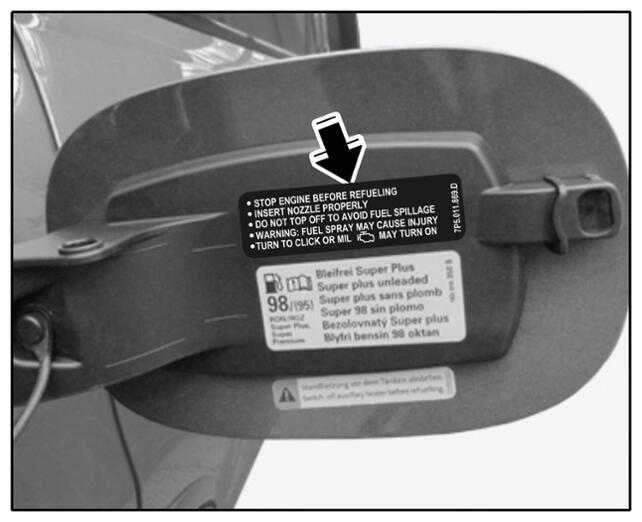

5. Affix sticker (warning note) -arrow-  to the filler flap.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   1. 5.1  Clean bonding position with a cleaning cloth and isopropanol to remove any dust and grease.
   2. 5.2  Affix sticker.

      20055500:

   Replacing fuel tank cap; Labor time 20 TU

   Includes

   Fitting retaining strap on new fuel tank cap, affixing sticker.
