Installing Drive Belt

Information

The pictures shown in this document may differ from the original.

Information

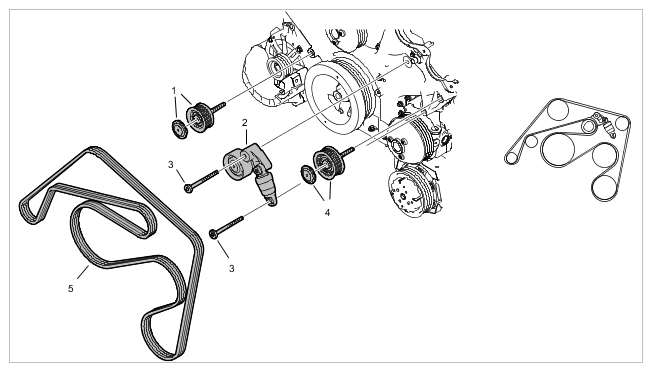

Fig 1: Drive Belt Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Components

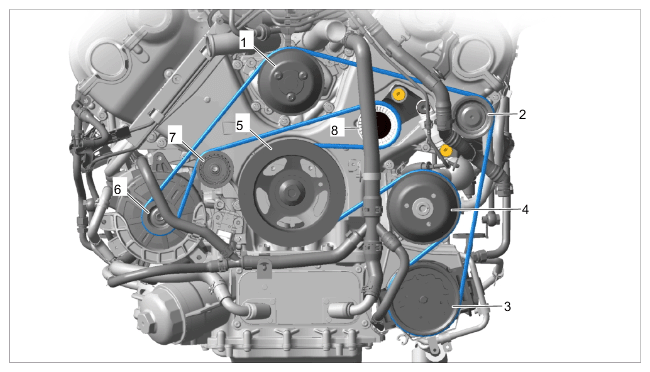

• The figure  > Components shows the complete belt threading course. The pulleys are numbered according to fitting sequence.

Fig 2: Belt Drive Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt drive

1. Bend the drive belt to form a loop and guide it through between the coolant pump pulley -1-  and crankshaft pulley -5-  towards to the tensioning roller -8-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

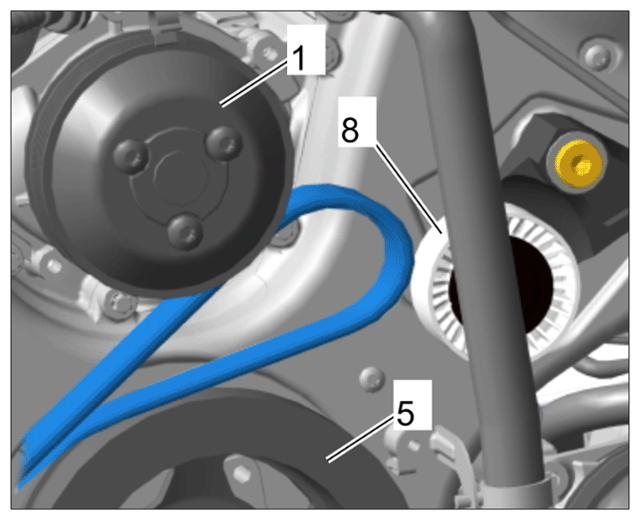

   Fitting drive belt - Step 1

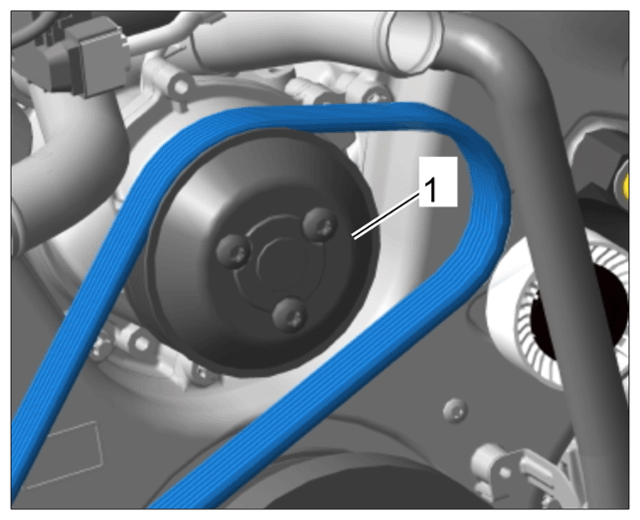

2. Place the top part of the belt loop over the coolant pump pulley -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting drive belt - Step 2

3. Place the lower part of the belt loop around the crankshaft pulley at the bottom -5-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

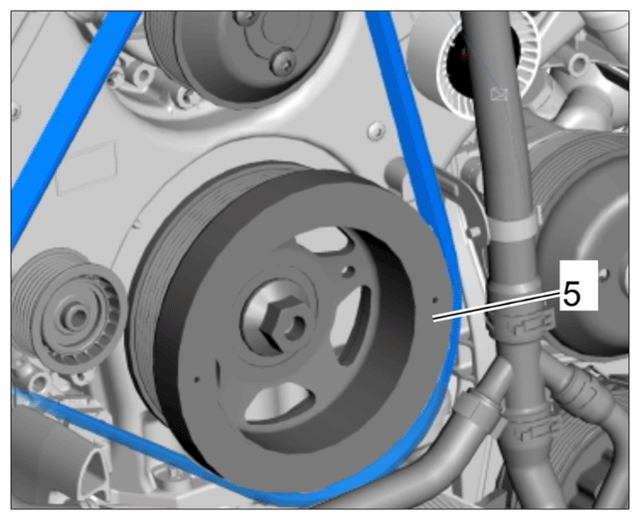

   Fitting drive belt - Step 3

4. Guide the belt section from the coolant pump pulley -1-  around the deflection roller -2-  on cylinder bank 5 - 8.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

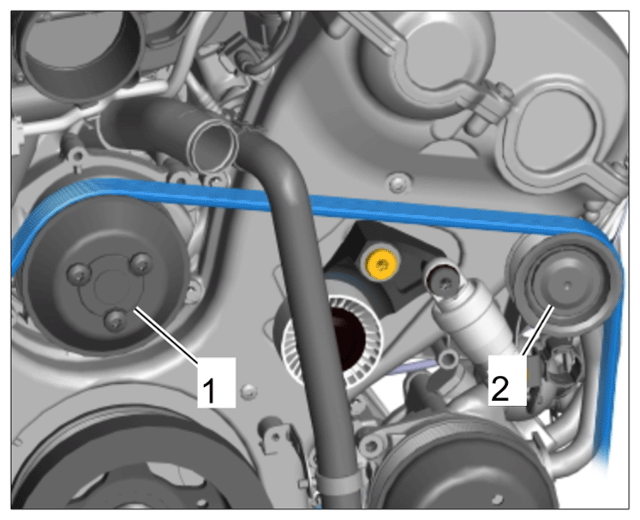

   Fitting drive belt - Step 4

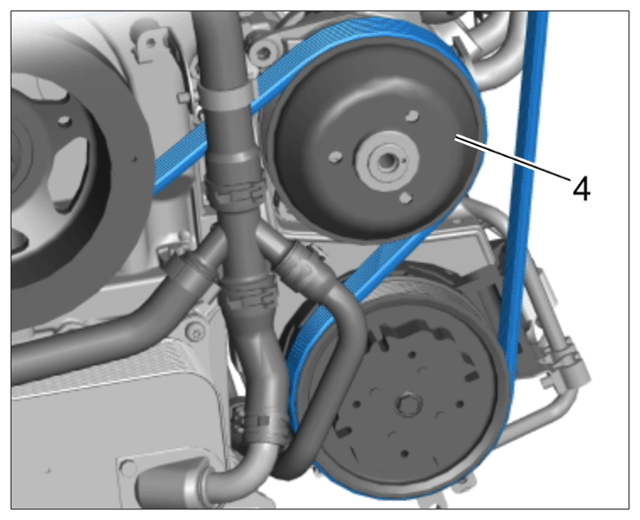

5. Then guide the section of the belt around the air-conditioning compressor pulley -3-  at the bottom.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

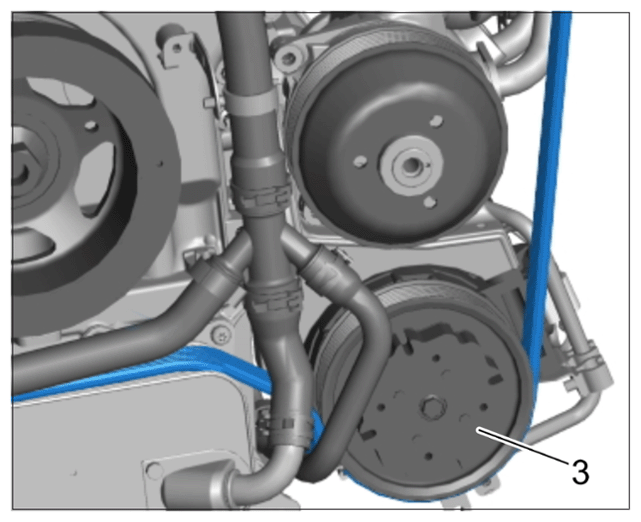

   Fitting drive belt - Step 5

6. Lay a loop around the power-steering pump -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting drive belt - Step 6

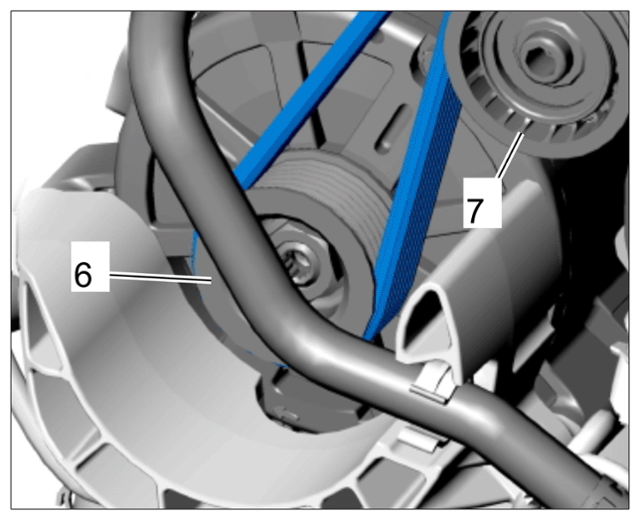

7. Lay the loose end of the drive belt from the coolant pump downwards and around the generator pulley -6-  and deflector roller -7-  of cylinder bank 1 - 4.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting drive belt - Step 7

8. Gather the belt section between the deflection roller -7-  of cylinder bank 1 - 4 and the crankshaft pulley -8-  to form a loop and guide it upwards to the tensioning roller -8-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

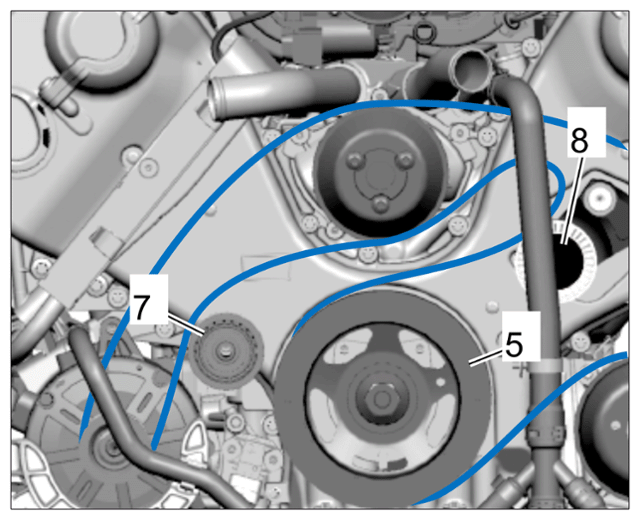

   Fitting drive belt - Step 8

   Information

   • Using an open-ended wrench can damage the belt tensioner.
   • Using a tool with a width across flats of 32 mm can damage the belt tensioner.

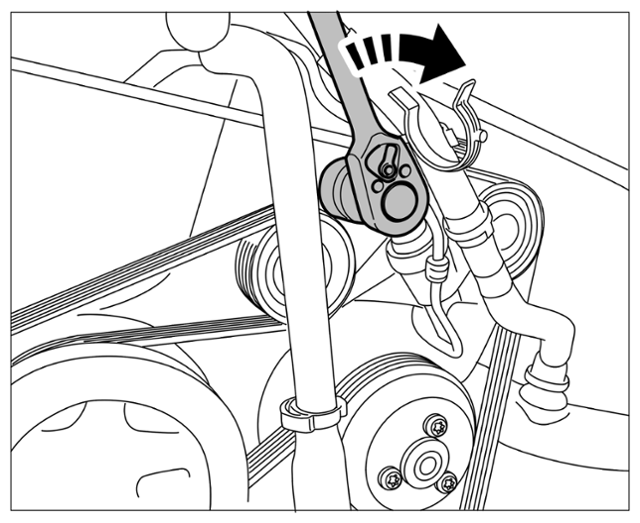

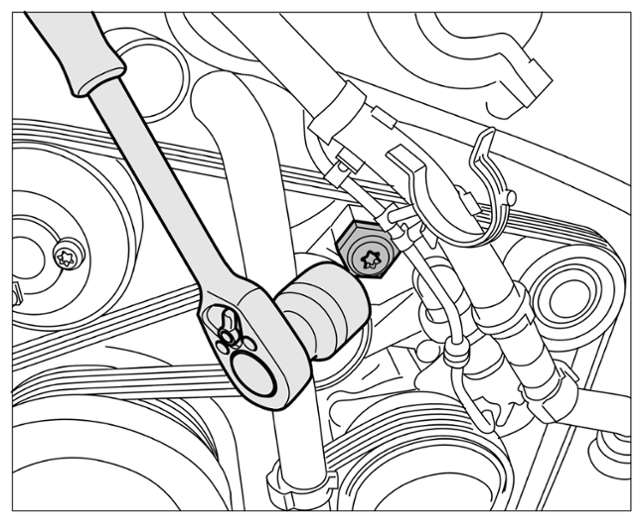

9. Use a ring wrench or socket (width across flats 30) to turn the belt tensioner in a clockwise direction at the hexagon.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Belt tensioner hexagon

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening the belt

10. Lay the drive belt on the tensioning roller. Slowly relieve the tensioning roller.
11. Check that the drive belt is routed correctly. > Components
12. Check that the drive belt is seated correctly on the pulleys.
13. Clip the coolant hose -1-  into the holder -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

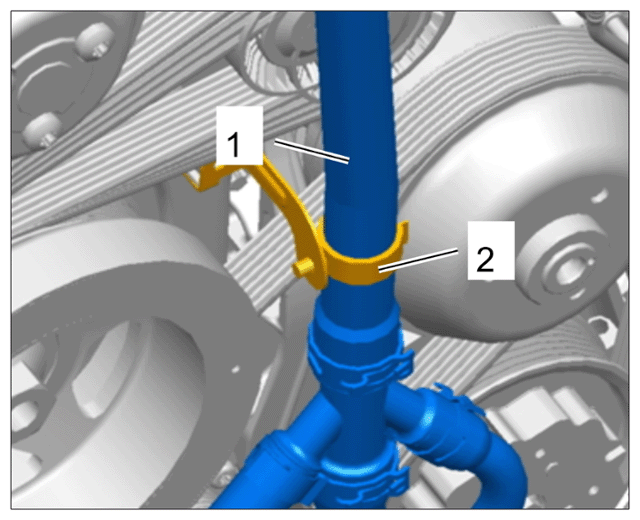

    Hose

14. Turbo only:

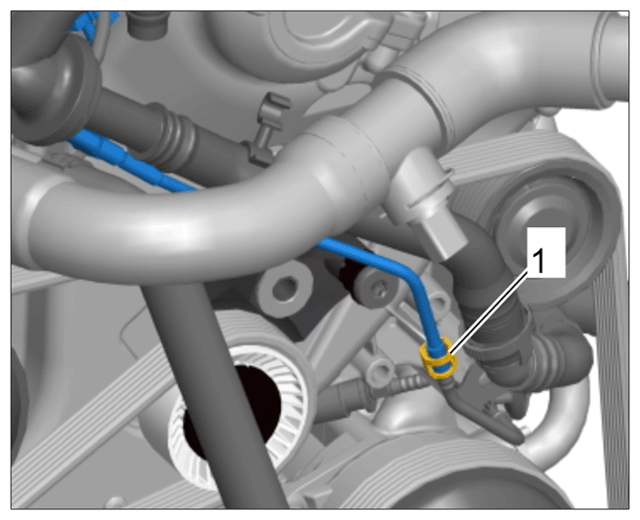

    Connect the wastegate line at the clamp -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wastegate line

15. Turbo only:

    Attach the check valve -1-  to the air box and fit a new clamp -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

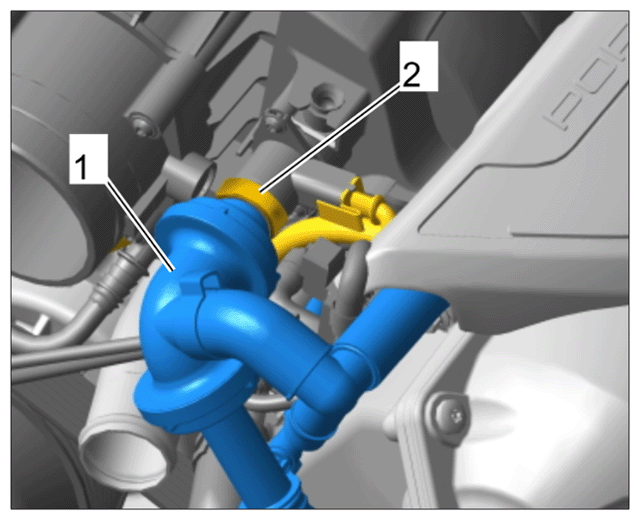

    Check valve for positive crankcase ventilation

16. Turbo only:

    Attach hoses to the check valve and fit with new clamps.
