Removing Sealing Ring For Crankshaft Pulley

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the four fastening screws and remove the sealing flange with sealing ring.
    1. 1.1 Replace joint flange.

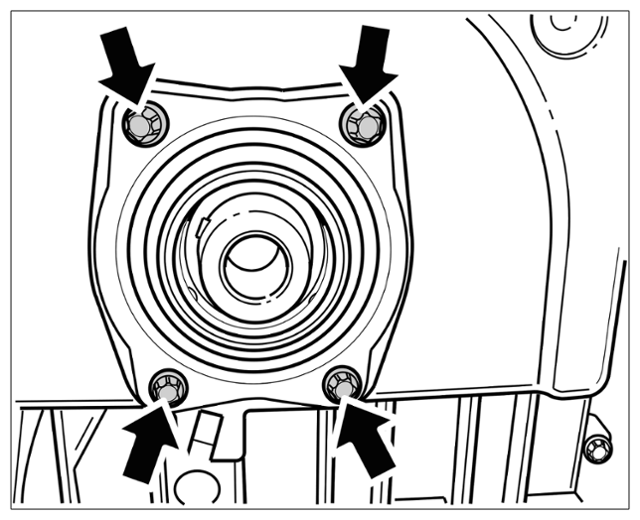

    G16308380Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing cover with sealing ring

  2. Clean the sealing surface of the sheetmetal cover.
