Removing Sealing Ring For Crankshaft (Transmission Side)

WARNING: This page is about a different variant/trim than selected.

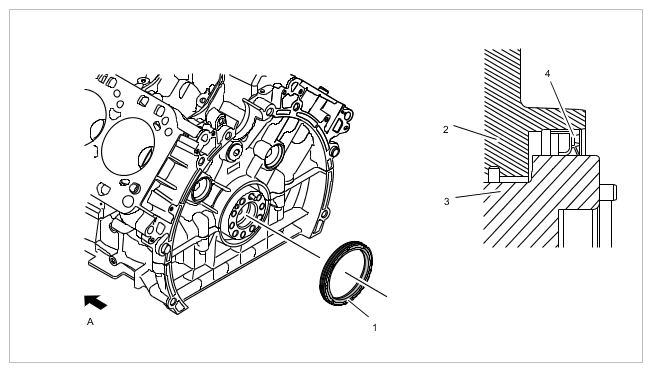

Fig 1: Radial Shaft Seal Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Radial shaft seal

1	Radial shaft seal (use protection cap for radial shaft seal for fitting; only fit when crankcase is screwed on)
2	Crankcase
3	Crankshaft
4	Radial shaft seal (sectional view)
A	Direction of travel

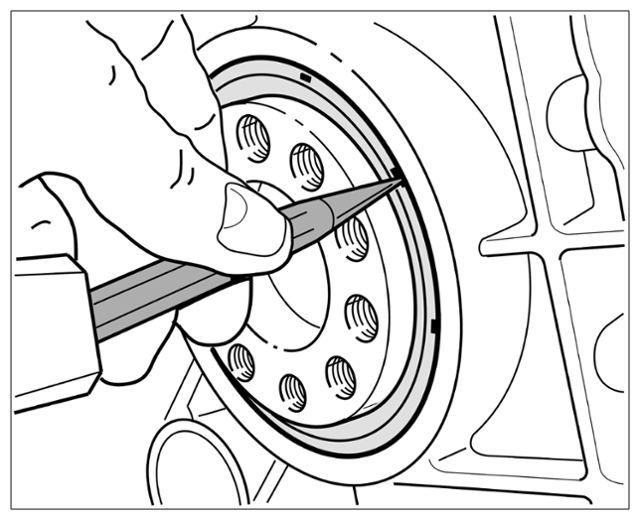

Use the > Nr.167 - drift punch, 1-mm tip to drive a small hole at a non-rubberised spot (rectangular window in the ring) on the sealing ring. > Drift punch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drift punch

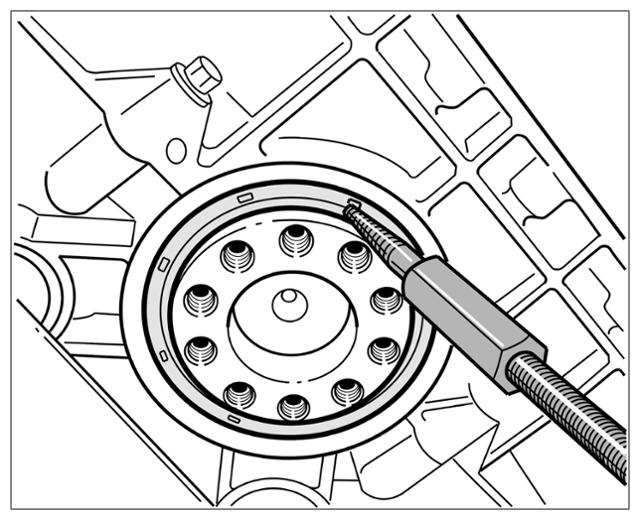

Screw in the extractor tip. Use the > Nr.168 - slide hammer kit to knock out the extractor tip together with the sealing ring. Alternatively, you can screw in a suitable tapping screw and pull out the sealing ring using a pliers. > Knocking out sealing ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Knocking out sealing ring

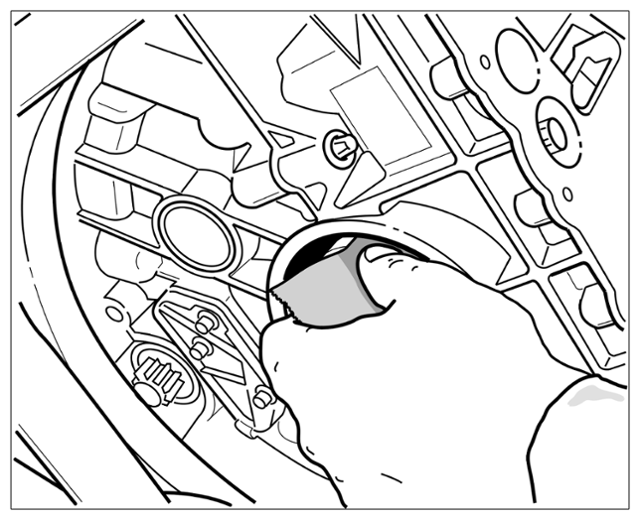

Clean the crankshaft flange. The crankshaft flange must not be dirty or rusty. Clean it with brake cleaner and sand off any rust with a metal-polishing pad (e.g. Never Dull) if necessary. > Cleaning the crankshaft flange

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cleaning the crankshaft flange
