Installing Engine Cover (Design Cover)

Information

The tightening specifications for the basic engine are stored centrally.

> TECHNICAL VALUES

/

> 2X00IN TECHNICAL VALUES

or

> WM, 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS FOR ENGINE

Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

1. Lift up the torque support on the valve cover. Move engine cover into installation position and press it onto the ball joints on the valve cover.

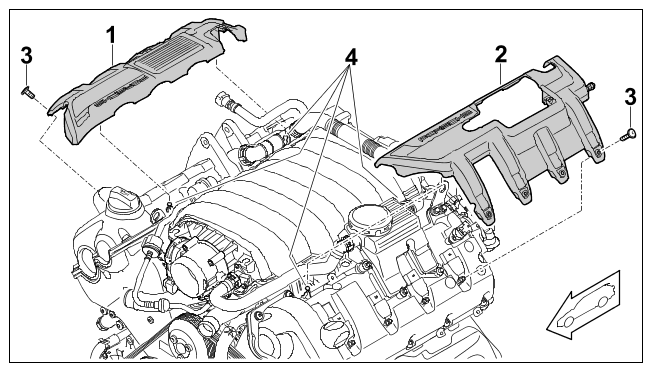

   Fig 1: Engine Design Cover Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Engine design cover

   1	Design cover for cylinder bank 1 to 4
   2	Design cover for cylinder bank 5 to 8
   3	Screw for securing design cover to bar ignition module
   4	Mounting points (ball joints)

2. Fit fastening screws for the engine cover at the bar ignition modules.
3. Fit design cover for throttle valve.
   1. 3.1 Place cover over the throttle valve and press it onto the Velcro strip > Design cover on throttle valve  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

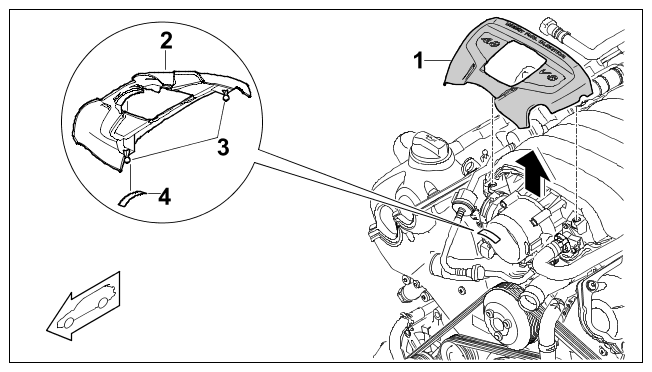

Design cover on throttle valve
