Removing Engine Guard

1. Unscrew side fastening screws -1-  for the front part of the engine guard.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening fastening screws at the sides

2. Unscrew rear -2-  and front fastening screws -3-  for the front part of the engine guard.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

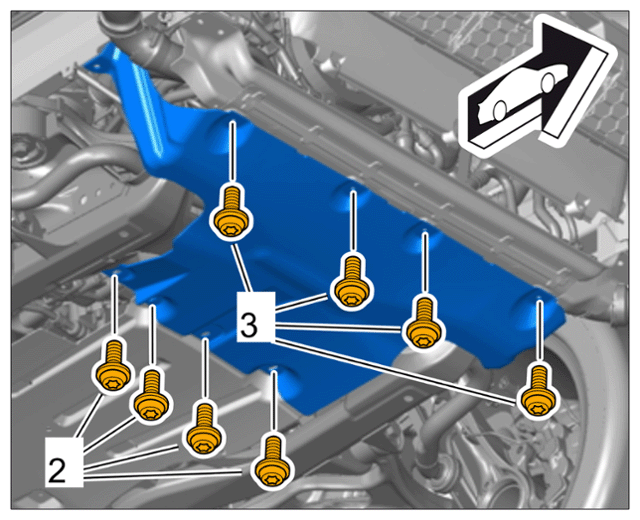

   Loosening fastening screws at the front

3. Remove front part of engine guard.
4. Unscrew rear -5-  and front fastening screws -4-  for the rear part of the engine guard.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

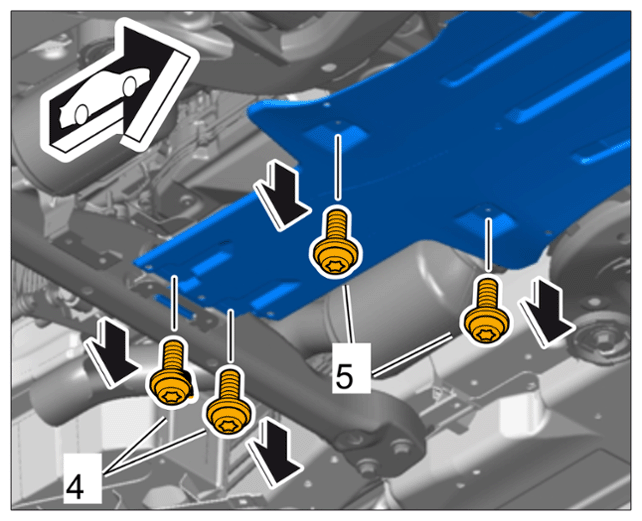

   Loosening fastening screws at the rear

5. Remove rear part of engine guard.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

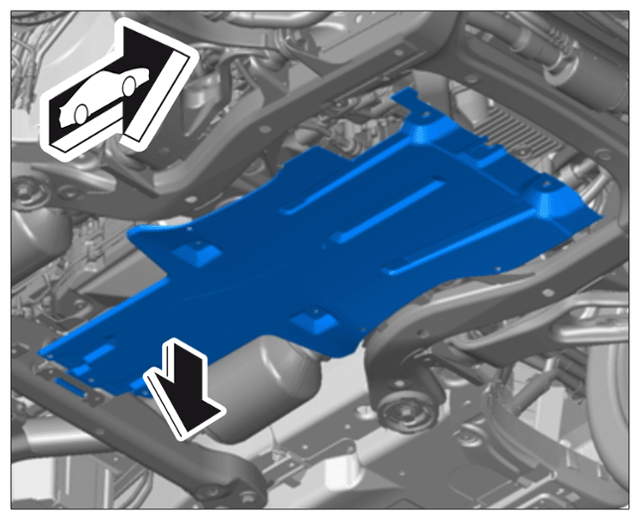

Removing rear engine guard
