Installing Oil Separator
WARNING: This page is about a different variant/trim than selected.
Information
The seals on the oil separator must always be replaced following removal.
Information
The tightening specifications for the basic engine are stored centrally.
/
or
> WM, 1001IN SUPPORTING THE ENGINE ON THE BODY
Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

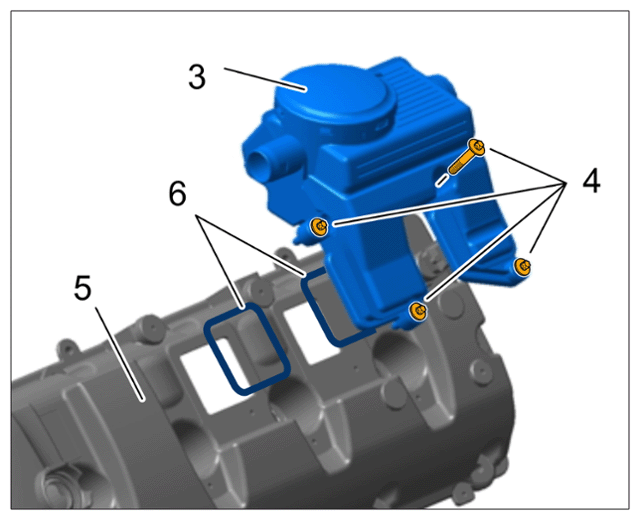

- Place oil separator -3-
evenly and carefully onto the valve cover -5-
using both hands. Press connection piece of oil separator into the bore on the valve cover.
Oil separator
- Replace seals -6- .
- Fit and tighten four fastening screws -4-
on the oil separator -3-
.
> Tightening torque 10 (7.5 ft lb.) Nm

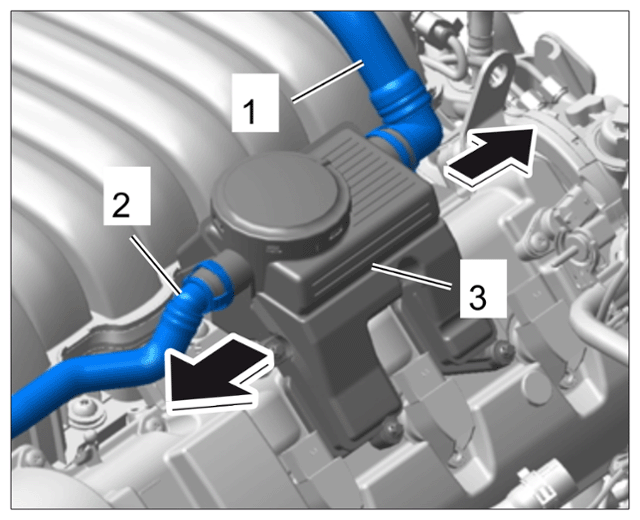

- Fit line connections -1 and 2-
to the connection piece on the oil separator -3-
. Check sealing rings on lines and replace if necessary.
Line connections for oil separator
- If screw elements are damaged, tap them out of the oil separator and tap in new elements using a plastic hammer.
