Component Information

WARNING: This page is about a different variant/trim than selected.

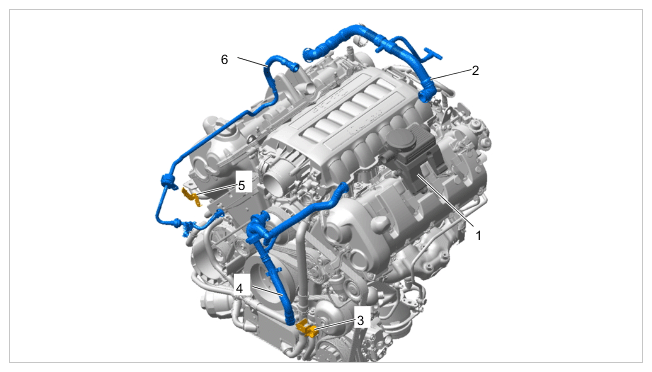

Fig 1: Oil Separator For Positive Crankcase Ventilation Components Location - Turbo Engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil separator for positive crankcase ventilation - turbo engine

1	Oil separator
2	Line
3	Holder
4	Full-throttle ventilation check valve => IMPORTANT: One-way coupling for pipe on turbocharger!!
5	Holder
6	Tank ventilation

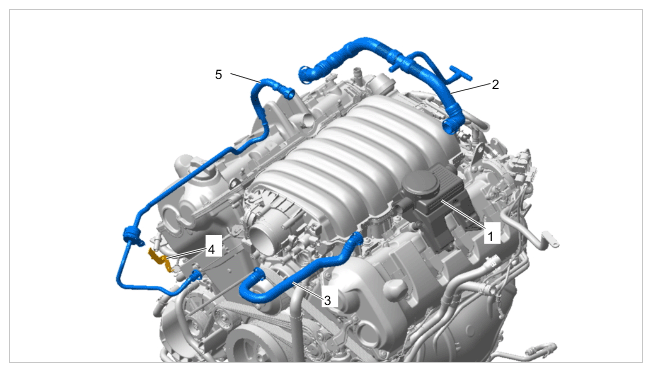

Fig 2: Oil Separator For Positive Crankcase Ventilation Components Location - Naturally Aspirated Engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil separator for positive crankcase ventilation - naturally aspirated engine
