Technical Values
WARNING: This page is about a different variant/trim than selected.
TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Torque support to bracket on body and valve cover | Initial tightening/aluminium screw, M10/Item 1/Always replace threaded connection following removal | Tightening torque | 20 (15 ft lb.) Nm | ||
|

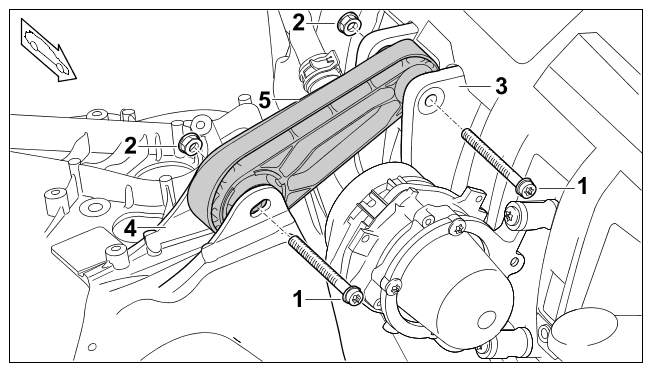

Installation position of torque support |
|||||
| Torque support to bracket on body and valve cover | Final tightening/aluminium screw, M10/Item 1/Always replace threaded connection following removal | Torque angle | 180° | ||
|
Installation position of torque support |
|||||
