Installing Torque Support
WARNING: This page is about a different variant/trim than selected.
- Move torque support into installation position. When doing so, make sure that the part identification is legible on the back, in the opposite direction to the direction of travel.
- 1.1 Use new aluminium screws and nuts. Fit the two bolts and nuts on the body and valve cover. Once the component is installed correctly, tighten according to specifications. > Installation position of torque support (position of secondary air pump differs in illustration)
> Tightening torque 20 (15 ft lb.) Nm
> Torque angle 180°

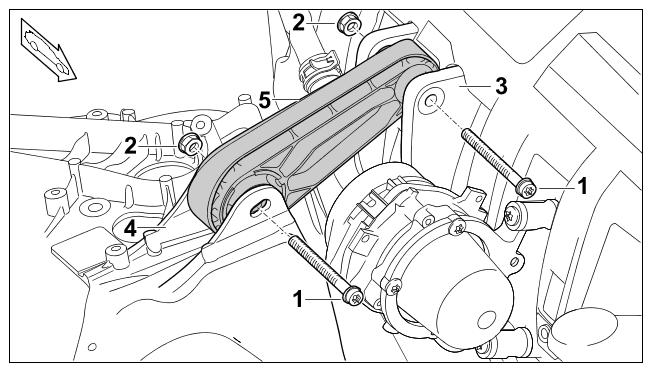

Installation position of torque support (position of secondary air pump differs in illustration)
| 1 | Aluminium screw, M10 |
| 2 | Nut, M10 |
| 3 | Bracket on valve cover |
| 4 | Bracket on body |
| 5 | Torque support; part identification on the back, must be installed in opposite direction to direction of travel. |
