Coolant Lines
WARNING: This page is about a different variant/trim than selected.
TIGHTENING TORQUE SPECIFICATIONS
| Location |
Description |
Type |
Basic value |
Tolerance |
| Coolant pipes to transmission |
Arrows |
Tightening torque |
9 (6.5 ft lb.) Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

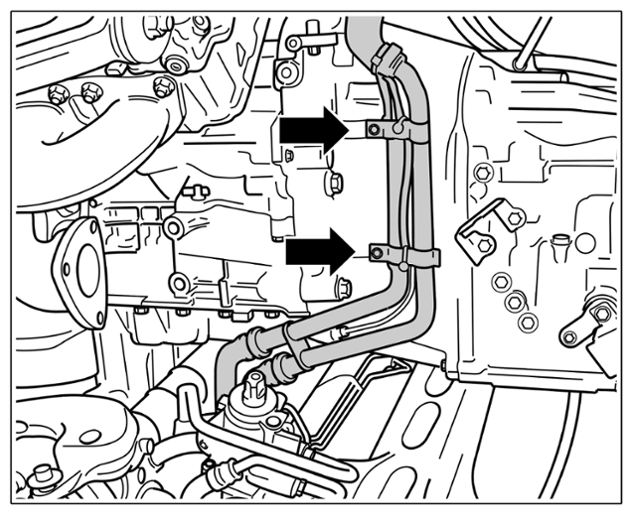

Coolant pipes on transmission |
