Engine Guard

WARNING: This page is about a different variant/trim than selected.

TIGHTENING TORQUE SPECIFICATIONS - ENGINE GUARD

Location	Description	Type	Basic value
Front section of engine guard	Side screws/Item 1	Tightening torque	9 (6.5 ft lb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening side fastening screws
Front section of engine guard	Rear and front screws/Item 2 and 3	Tightening torque	9 (6.5 ft lb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening front fastening screws
Rear section of engine guard	Rear and front screws/Item 4 and 5	Tightening torque	9 (6.5 ft lb.) Nm

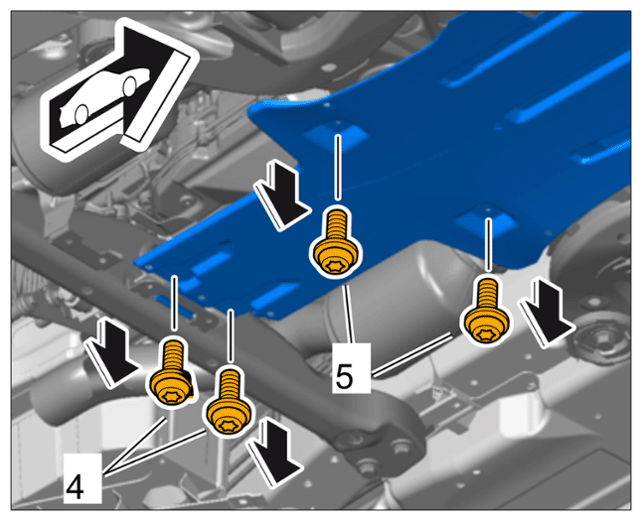

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening rear fastening screws
