Engine Carrier To Body

WARNING: This page is about a different variant/trim than selected.

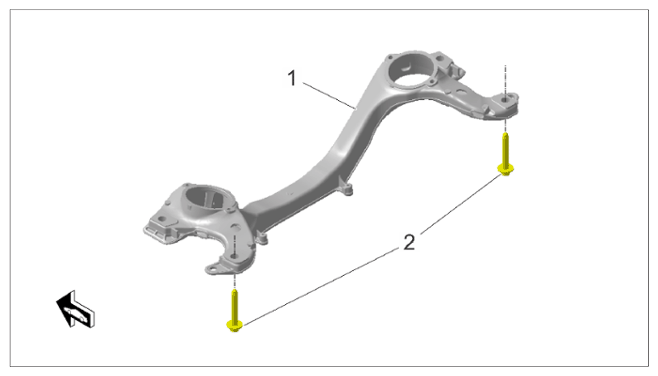

Fig 1: Engine Carrier Components Location With Torque Specification (VR6 Engine)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine carrier (VR6 engine)

1	Engine carrier
2	Screw/replace > Initial tightening 120 (89 ft lb.) Nm +/- 10 (7.5 ft lb.) Nm > Final tightening + 180° +/- 20°
