Securing V8 Engine On Assembly Support
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Heavy components
- Risk of squashing
→ Wear personal protective gear.
→ Get someone to help if necessary.
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
→ Secure components to prevent them from falling down.
Information
- The engine needs to be suspended on an assembly support for certain repair work.
Information
- A modified engine support is used on the Cayenne E2 because of the Start Stop starter.
- The turbo engine, including flywheel, weighs about 250 kg. To avoid overloading the engine support, make sure that there are no additional loads (e.g. heavy components stored in the vehicle or a person sitting in the vehicle).
Information
The pictures shown in this document may differ from the original.
- Secure > 9676/1 - engine support to the engine. To do this, use the four screws > 9590 - mounting elements and tighten them. > Engine support

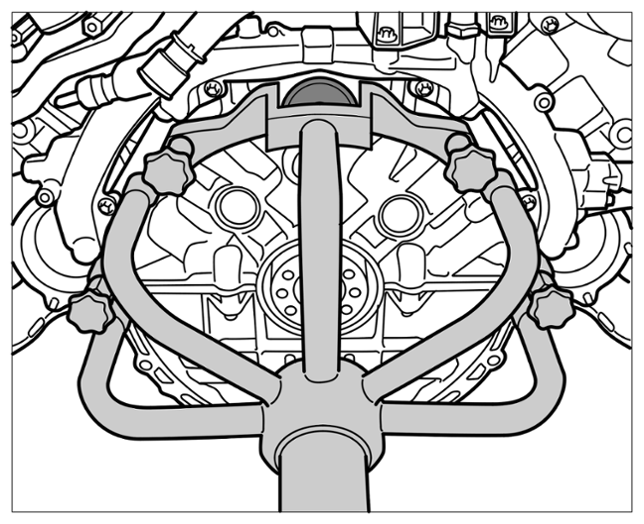

Engine support
- Move engine in front of the engine support (assembly support) using the workshop crane and guide it in with the help of a second worker. Raise engine so that the engine can be eased in horizontally. > Engine crane and engine on assembly support

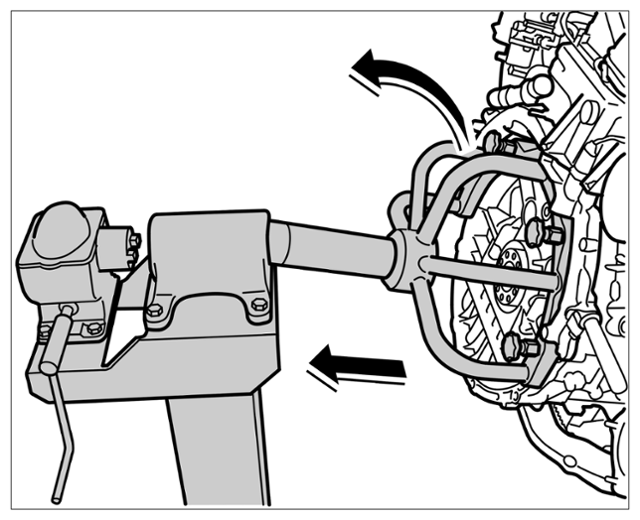

Engine crane and engine on assembly support
- Secure engine on assembly support. > Engine secured on assembly support

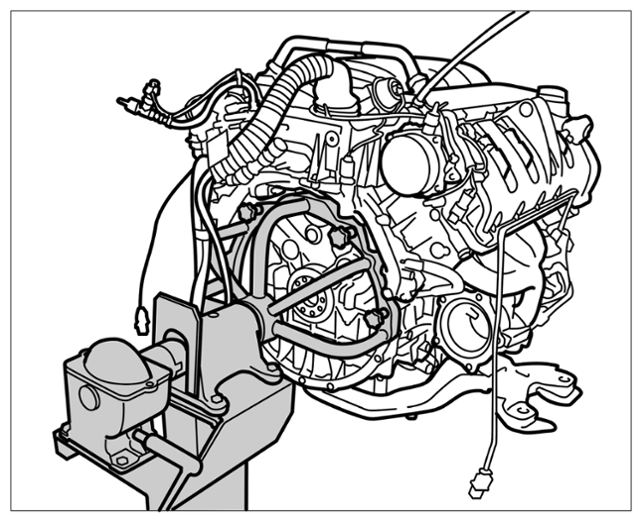

Engine secured on assembly support
