Ti, 1010 Crankcase/Pistons/Piston Rings Need To Be Replaced - Mixed Installation Is Not Permitted (25/13)

Information

This Technical Information replaces the TI dated May 8, 2013.

Changes/additions  compared to the previous Technical Information:

Section 'Situation - Spare parts requirements' for pistons and piston rings  :

Text changed to "now available again  ".

Model year

From 2008

Vehicle Type:

Cayenne S (9PA)/Cayenne Turbo (9PA)/Cayenne Turbo S (9PA)

Cayenne S (92A)/Cayenne Turbo (92A)

Panamera/Panamera S/Panamera Turbo/Panamera Turbo S

Concerns:

Cylinder liner in crankcase

Information:

If piston rings/pistons or the crankcase need to be replaced, a mixed installation can damage the cylinder liner.

Due to

• modified production methods  during the manufacture of the crankcase => from smooth honing to structural honing
• and the use of a different coating on the piston rings  (now DLC-coated)

only the combinations specified below are permitted.

=> Before carrying out any other work, check whether the cylinder liners are smooth-honed or structurally honed:

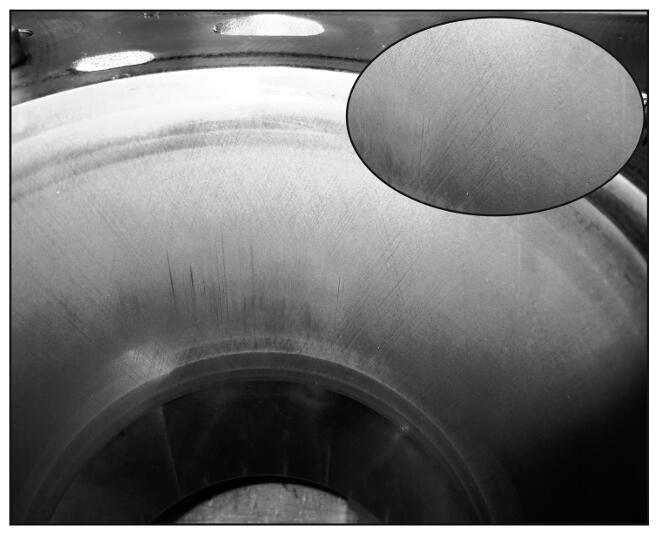

1. A) Cylinder liners are smooth-honed  (> Figure 1  , old - crankcase no longer available)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   • Spare parts requirements:  One or more pistons and piston rings (old type without DLC coating => now available again)

   => All pistons with piston rings can be replaced again in the usual way.

   • Spare parts requirements:  Crankcase (old type, smooth-honed - no longer available)

   => All pistons with piston rings and the crankcase must be replaced with new components.

   * When replacing the crankcase, refer to TI 24/13

   > 135900 CRANKSHAFT SEALING RING (TRANSMISSION SIDE) NEEDS TO BE REPLACED: CHECKING PRESS-IN DEPTH (24/13)

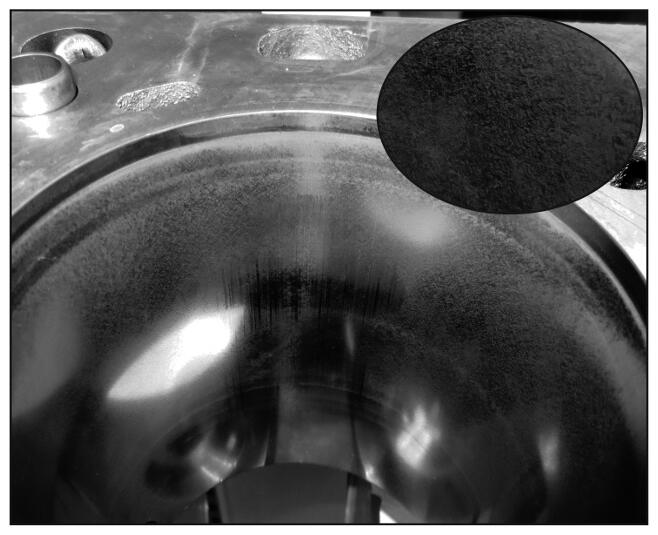

2. B) Cylinder liners are structurally honed  (> Figure 2  , new type)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

• Spare parts requirements:  One or more pistons and piston rings

=> Only replace the required piston(s).

• Spare parts requirements:  Crankcase

=> Only replace the crankcase.

* When replacing the crankcase, refer to TI 24/13

> 135900 CRANKSHAFT SEALING RING (TRANSMISSION SIDE) NEEDS TO BE REPLACED: CHECKING PRESS-IN DEPTH (24/13)

Date of Introduction:

Only engines with structurally honed cylinder liners are used in vehicles as of the following engine numbers:

Vehicle type:	Engine type:	Engine number
Panamera	M4620	VC08746
Panamera 4	M4640	VC08729
Panamera S	M4820	C02097
Panamera 4S	M4840	C03992
Panamera Turbo Panamera Turbo S	M4870	C03303
Panamera GTS	M4840G	D01925
Cayenne S	M4802	C12137
Cayenne Turbo	M4852	C05372

References:

> 100137 DISASSEMBLING AND ASSEMBLING ENGINE
