Removing Air Cleaner Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

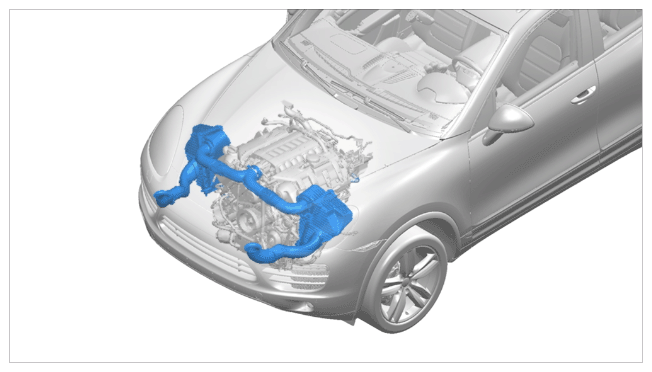

Air cleaner housing - V8 S

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

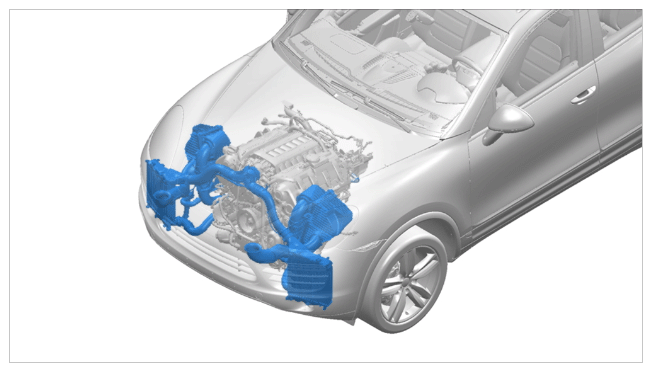

Air cleaner housing - V8 Turbo

1. Remove the air guide.

   > 243619 Removing and installing air guide - section on "REMOVING "

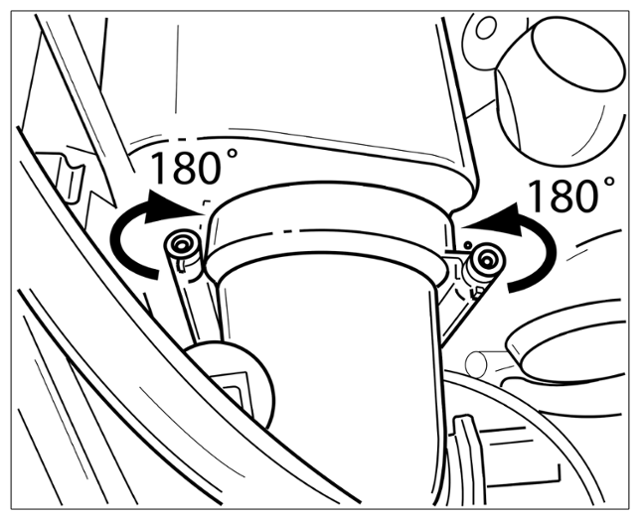

2. Loosen connections on the air cleaner covers. To do this, turn the bolts 180° and pull them out > Loosening connections on air cleaner  . Pull off intake pipes.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening connections on air cleaner

3. Open the cover on the air cleaner housing.

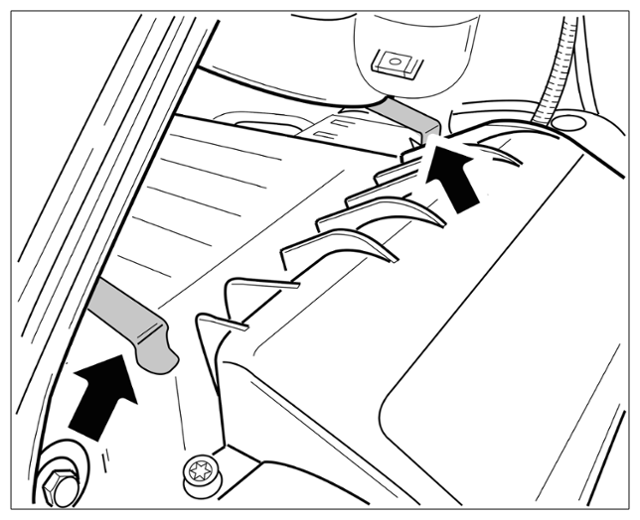

   To do this, unclip the two fastening clamps -arrows-  using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening clamps

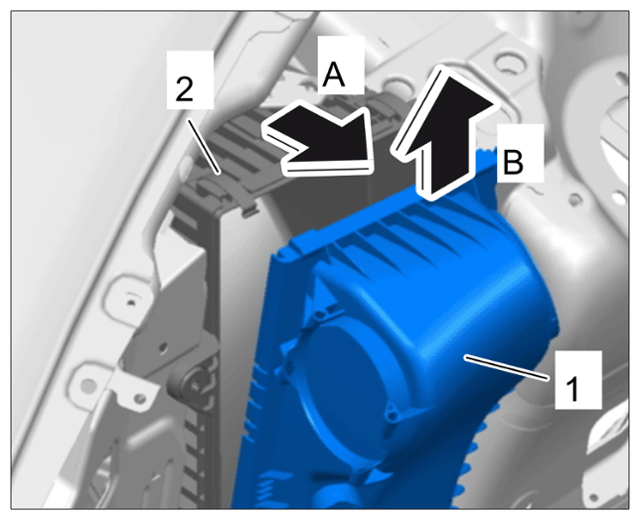

4. Fold the cover -1-  of the air cleaner housing -2-  forward at the top -A-  and pull it out in an upward direction -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing cover on air cleaner housing

5. Remove air-cleaner element.

   > 242455 Replacing air-cleaner element - section on "REPLACING "

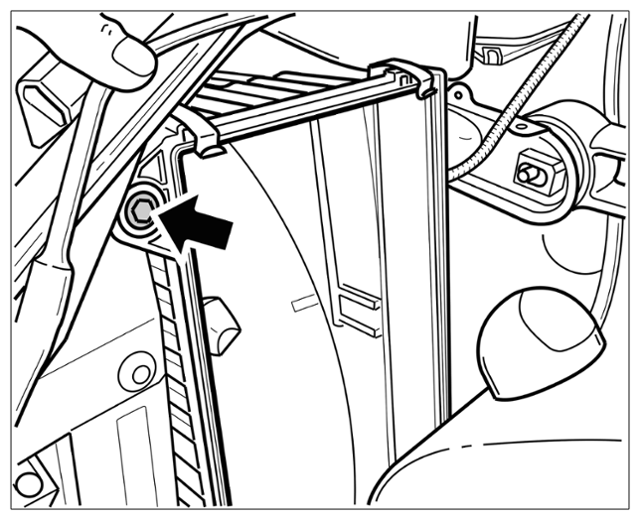

6. Loosen the fastening screw -arrow-  on the air cleaner housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screw

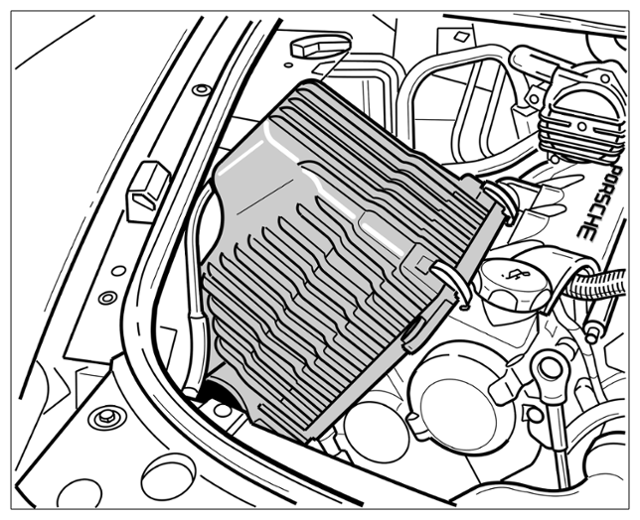

7. Lift the air cleaner housing, tip it towards the engine and remove it from the engine compartment. > Air cleaner housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cleaner housing
