Subsequent Work

Information

If the fuel level sender is replaced, the sender must be calibrated following replacement.

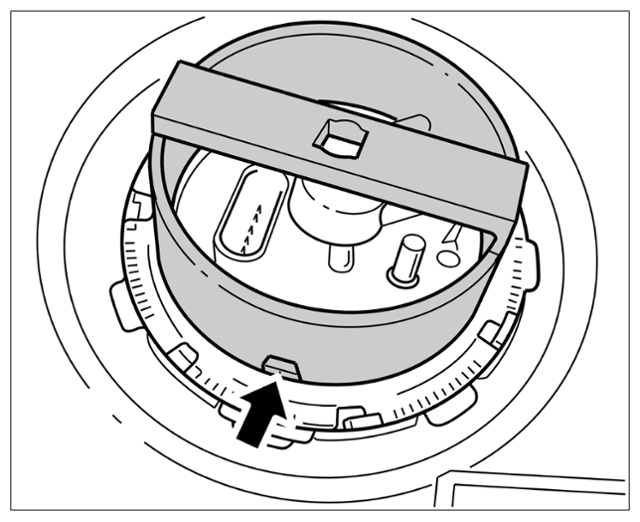

1. Close the fuel tank. To do this, fit the sheet-metal ring on the left and right connection unit and tighten using special tool > T10202 - wrench. > Cap  > Tightening torque 145 (107 ftlb.) Nm +/- 5 (3.5 ftlb.) Nm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cap

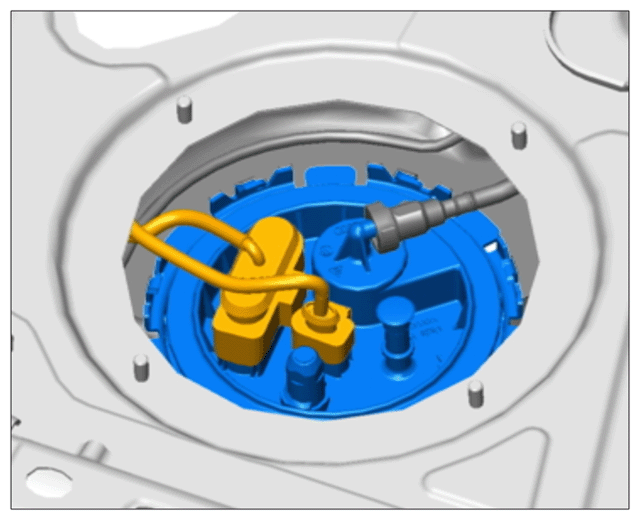

2. Fit all connections of the right connection unit (fuel lines, ventilation lines and electric connectors).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuel supply and connection points at right connection unit

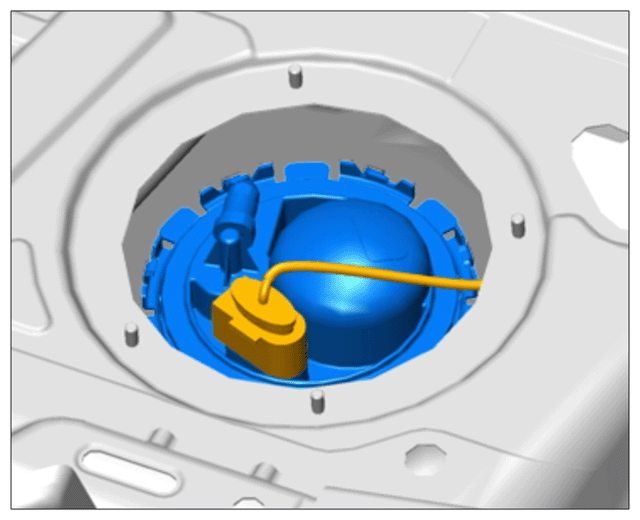

3. Plug in electric plug connection for the left connection unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connector for left connection unit

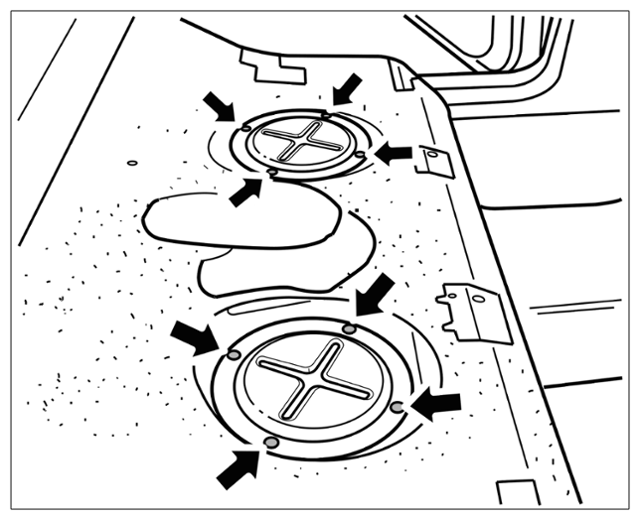

4. Fit left and right cap. Then tighten the four fastening nuts to > Tightening torque 10 Nm  . Refit loosened carpeting and fix with double-sided adhesive tape.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nuts for cap

5. Install rear seat.

   > Refer to the appropriate service information - section on "Installing"

6. If the fuel level sender was replaced, the fuel level sender must be calibrated.

   > 2015K2 CALIBRATING FUEL LEVEL SENDER

7. Fill the fuel tank.

   > 200317 Draining and filling fuel - section on "FILLING "

8. Close the filler flap.
9. Connect the battery.

   > 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
