Removing Control Unit For Distance Measuring Sensor

  1. Switch off ignition and pull remote control out of ignition lock.
  2. Remove cover on sensor. > Removing cover

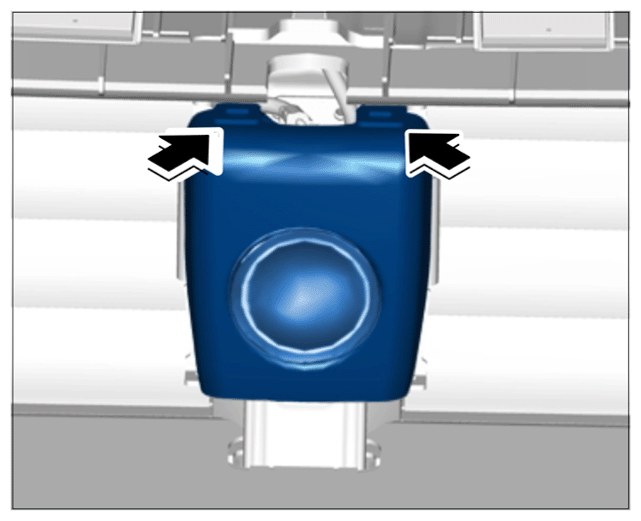

    G16309893Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing cover

    1. 2.1  Release cover at the top -arrows-  .
    2. 2.2  Fold cover forward and remove it.
  3. Release electric plug connection -arrow a-  and disconnect it -arrow b-  .

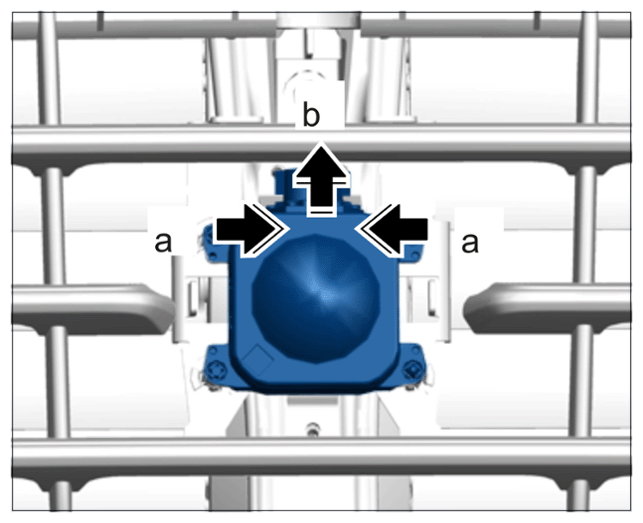

    G16309894Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and disconnecting electric plug connection

  4. Unclip electric wire harness from holder for distance measuring sensor control unit.
  5. Unscrew fastening screws -1-  .

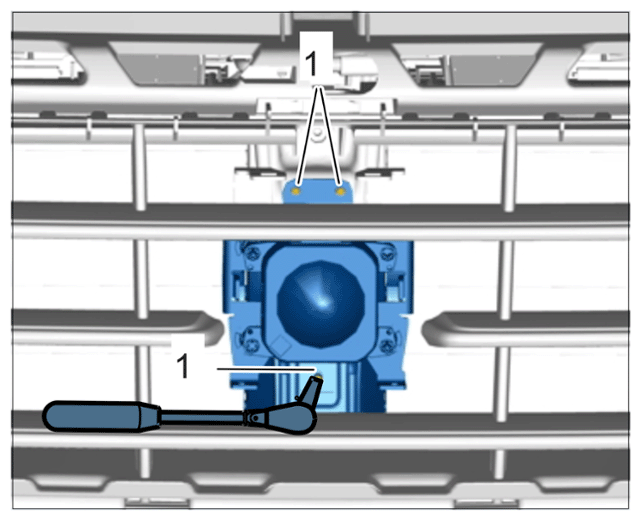

    G16309895Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing fastening screws

  6. Remove holder together with control unit for distance measuring sensor.
