Installing Starter

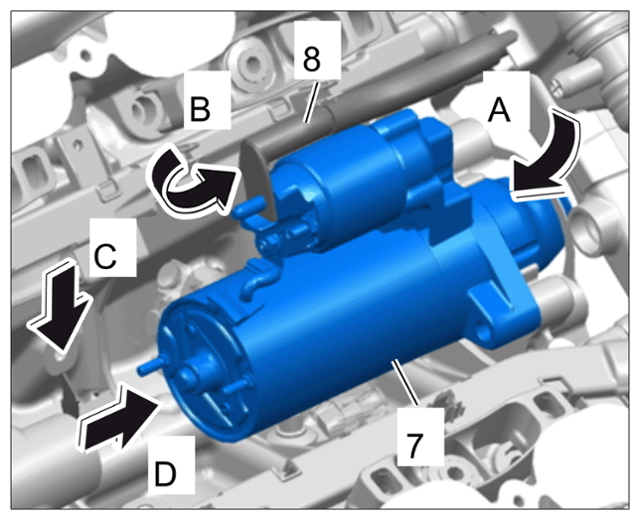

1. Install the starter.
   1. 1.1  Insert the starter -7-  from above -arrow A-  .
   2. 1.2  Fit line -8-  (-arrow B-  ).
   3. 1.3  Lower the starter -7-  (-arrow C-  ) and slide it into the engine housing -arrow D-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing starter

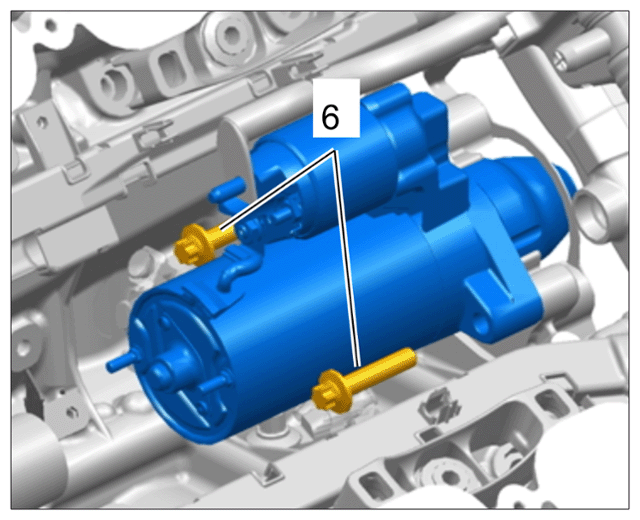

2. Secure starter by tightening the fastening screws -6-  to > Tightening torque 45 (33 ftlb.) Nm + 8 (6 ftlb.) Nm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws for starter

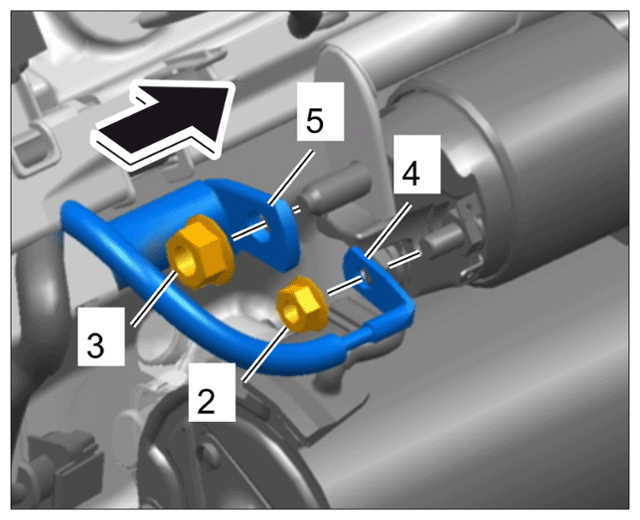

3. Position lines -4 and 5-  on the starter -Arrow-  and secure with the fastening nuts -2 and 3-  ., > Tightening torque 18 (13 ftlb.) Nm  > Tightening torque 6.5 (5 ftlb.) Nm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing electric lines to starter

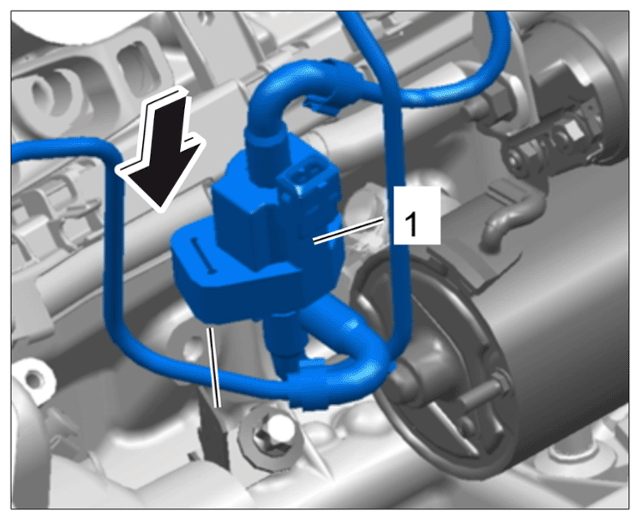

4. Push electric change-over valve -1-  onto the holder -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing electric change-over valve
