Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...
Nut for B+ line to generator	M8 - Item 1	Tightening torque	15 Nm

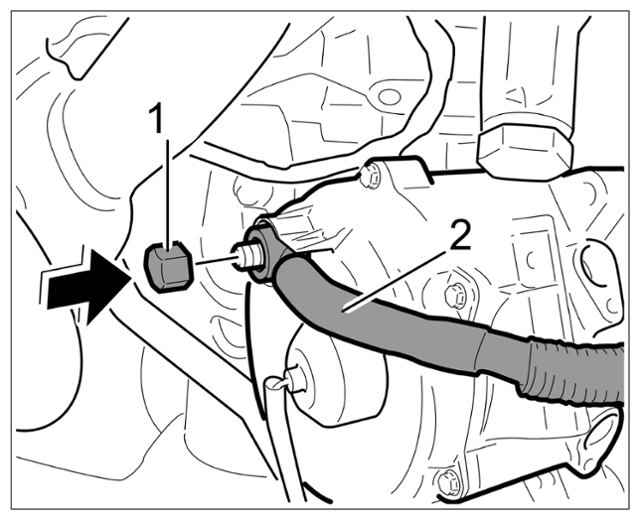

Courtesy of PORSCHE CARS NORTH AMERICA, INC. B+ line at the generator
Screw on generator	M6	Tightening torque	10 (7.5 ftlb.) Nm

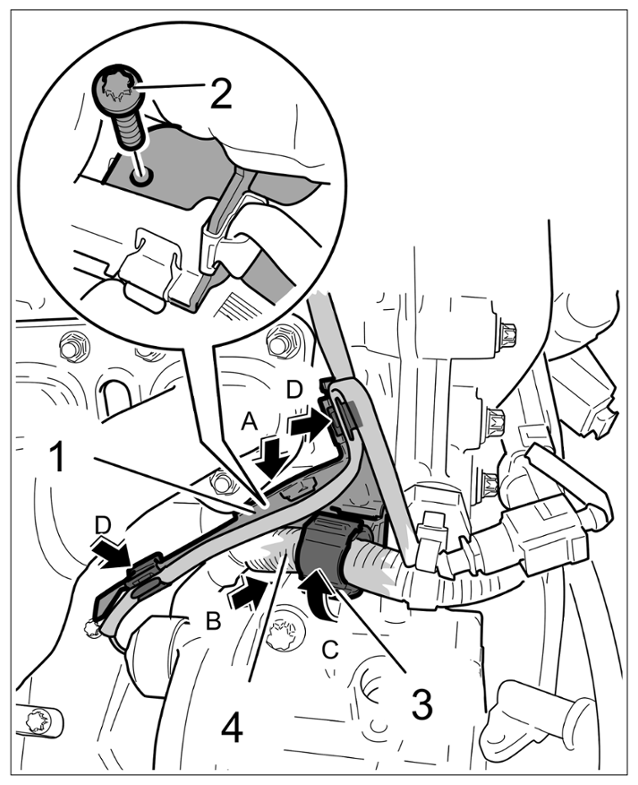

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder for three-phase generator lines
Screws securing crash console to three-phase generator	M6 - Item 4	Tightening torque	10 Nm

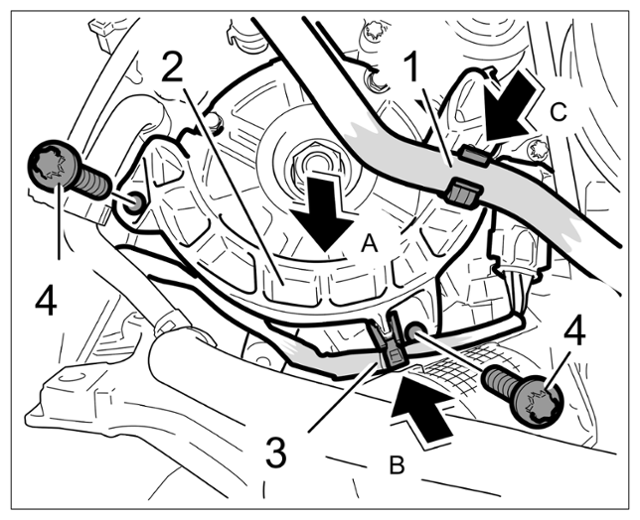

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Crash console
Screw securing ground cable to generator	M8 - Item 1	Contact force	20 Nm

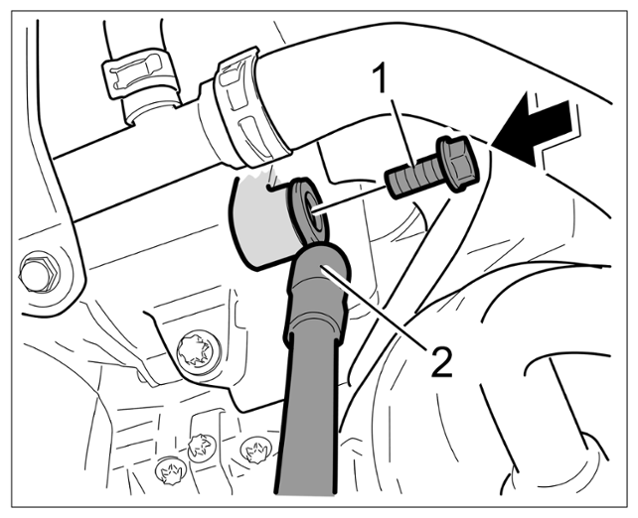

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing ground strap on generator
Fastening screw securing generator to engine, M8		Tightening torque	23 (17 ftlb.) Nm

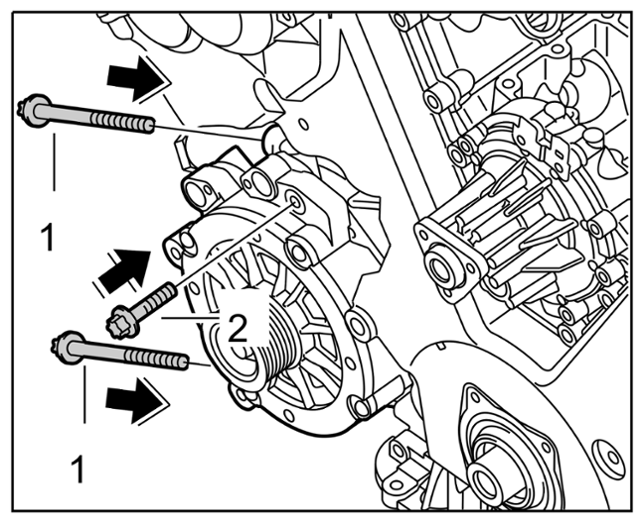

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tightening fastening screws on the generator
