Removing Battery Sensor
NOTE:
Using charging cables/jump leads directly on the vehicle battery.
- Risk of damage to battery sensor
→ Always connect charging cables/jump leads to the external power supply for jump-lead starting.
Information
Switch off all loads and remove the ignition key.
- Do not disconnect the battery while the engine is running.
- Disconnect and re-connect battery with extreme caution.
Information
The battery sensor and battery ground strap form one unit and can only be replaced together.
- Switch off ignition and pull remote control out of ignition lock.

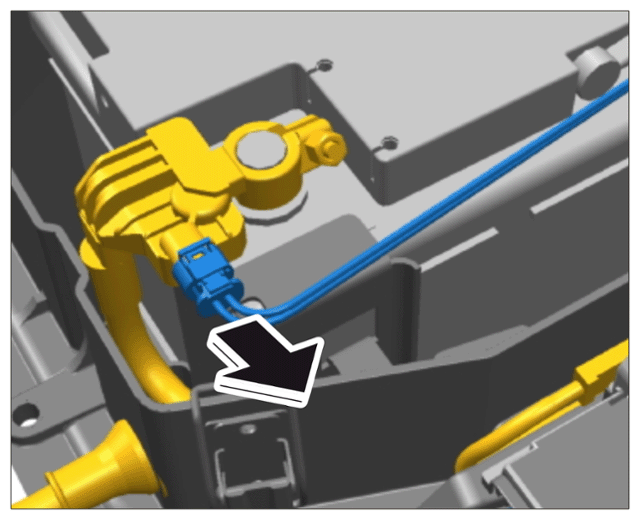

- Release electric plug connection on the battery sensor and disconnect it -arrow-
.
Disconnecting battery sensor connector
- Disconnect ground line for battery.
- Open the service flap in the driver's footwell.

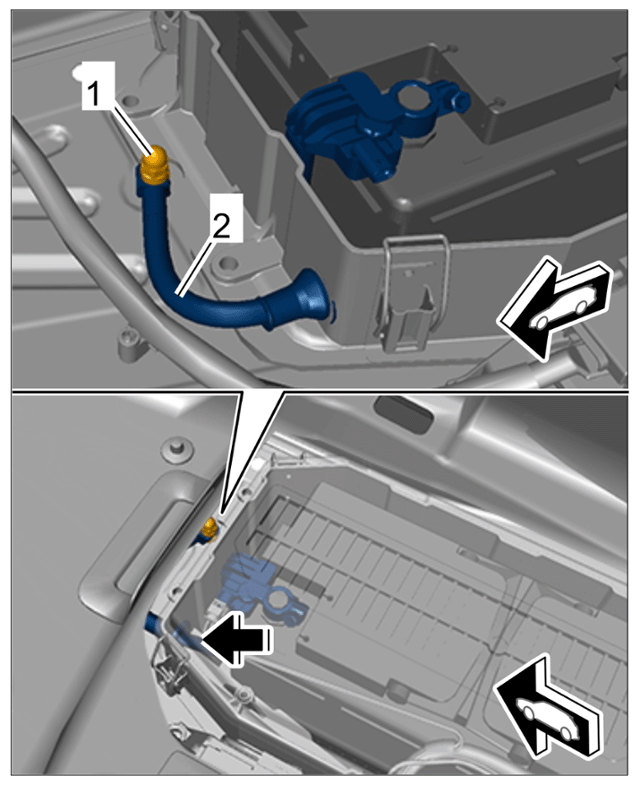

Battery sensor with ground line
- Unscrew fastening nut -1- and guide battery sensor with ground line -2- through the opening -arrow- in the battery box.
- Remove battery sensor with ground line -2- .
