Replacing Accelerator Pedal: Notes

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

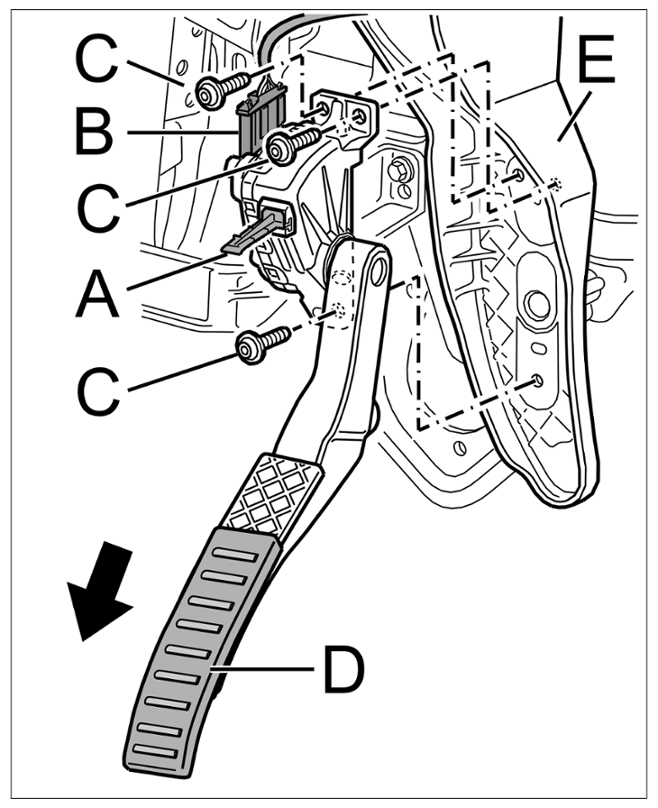

Accelerator pedal

1. Pull plug connection -B-  off the accelerator pedal module.
2. Remove accelerator pedal module. To do this, remove the three fastening screws -C-  .
3. Take the accelerator pedal module out of the footwell and remove the pedal cap -D-  by pulling it downwards.
