Right Fuel Level Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

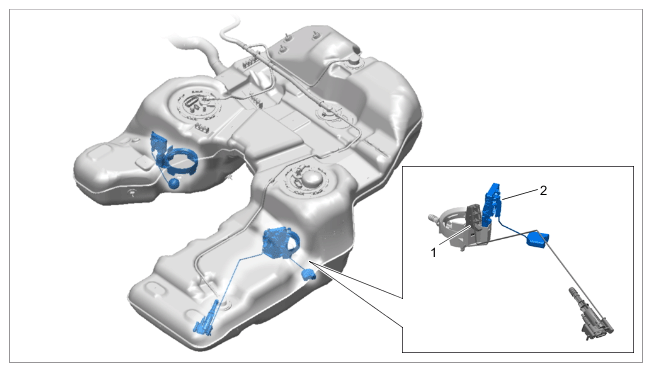

Fixing device for right fuel level sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

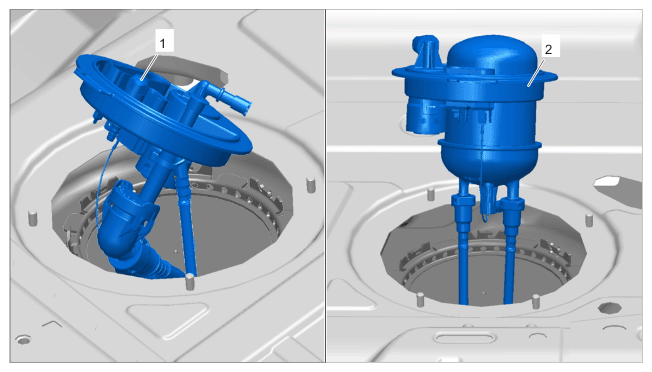

Left and right connection unit

1. Disconnect all connections apart from the fuel line -3-  on the underside of the right connection unit.
2. The fuel line -3-  cannot be disconnected from the pressure regulator (right connection unit).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

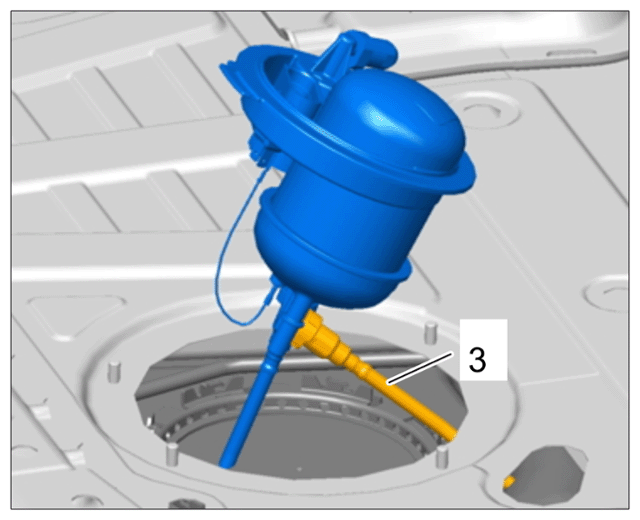

   Fuel line on pressure regulator

3. Disconnect the fuel line -3-  from the left connection unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

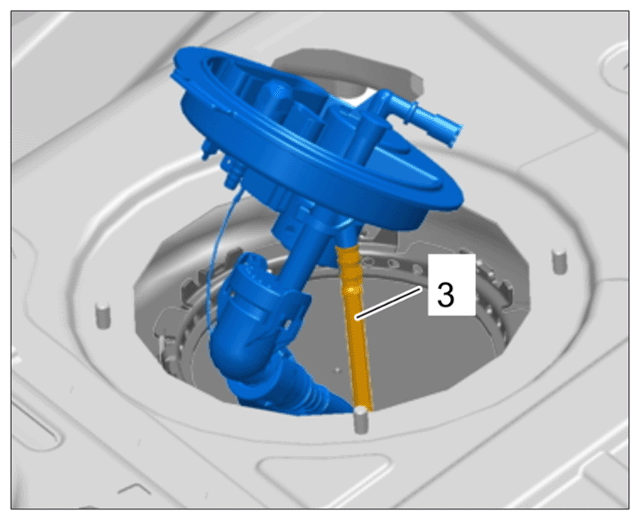

   Fuel line on left connection unit

4. Attach a piece of wire or similar item to the fuel line in order to pull the line back through the fuel tank during installation.
5. Remove the right connection unit (with pressure regulator) completely.
6. To make it easier to remove the sensor, remove the fuel pump by pulling it upwards.

   > 206619 Removing and installing fuel pump - section on "REMOVING "

7. Press the retaining spring on the sensor by hand while at the same time pulling the sensor up. > Removing fuel level sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

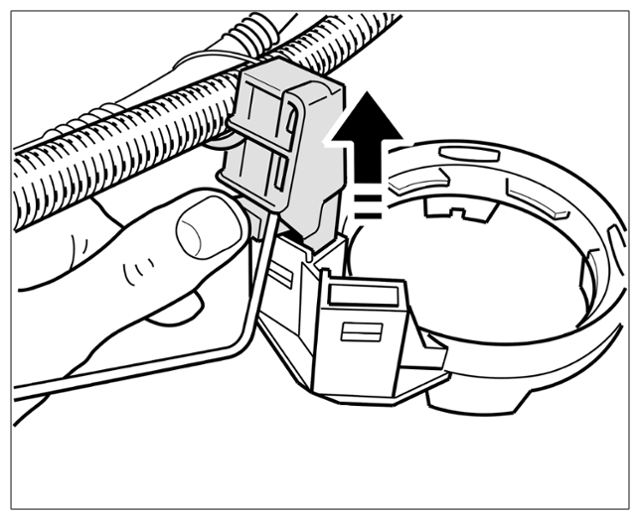

   Removing fuel level sensor

   Left fuel level sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

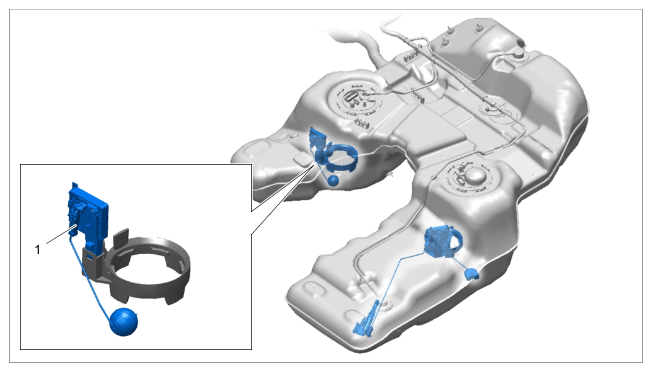

   Left fuel level sensor

   1	Left sucking jet pump and holder clipped into floor holder
   2	Left fuel level sensor clipped into floor holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Left and right connection unit

   1	Right connection unit with pressure regulator
   2	Left connection unit with fuel filter

8. Unplug electric plug connection -1-  for the fuel filter.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

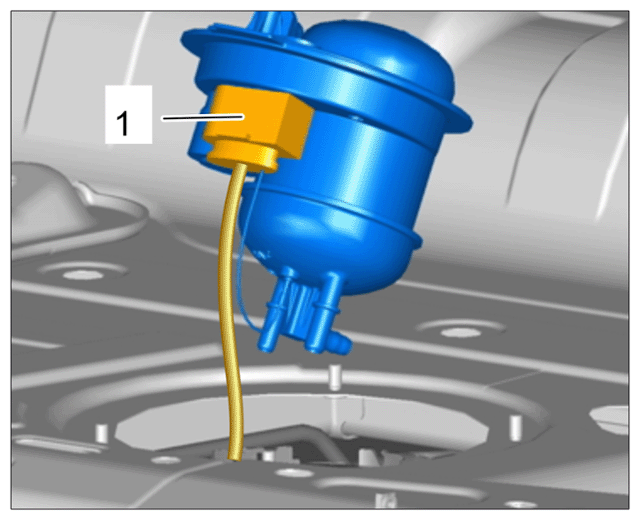

   Pulling off plug connection for fuel filter

9. Pull both lines -2 and 3 -  off the fuel filter.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

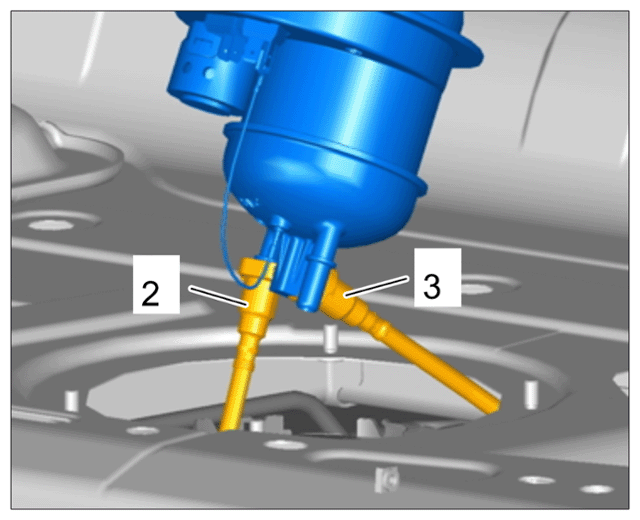

   Pulling lines off the fuel filter

10. Press the retaining spring on the sensor by hand while at the same time pulling the sensor up -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing fuel level sensor
