Right Fuel Level Sensor

  1. Install a new fuel level sensor. Press the sensor into its mounting. The retaining spring must lock with an audible click.
    G16309127Courtesy of PORSCHE CARS NORTH AMERICA, INC.

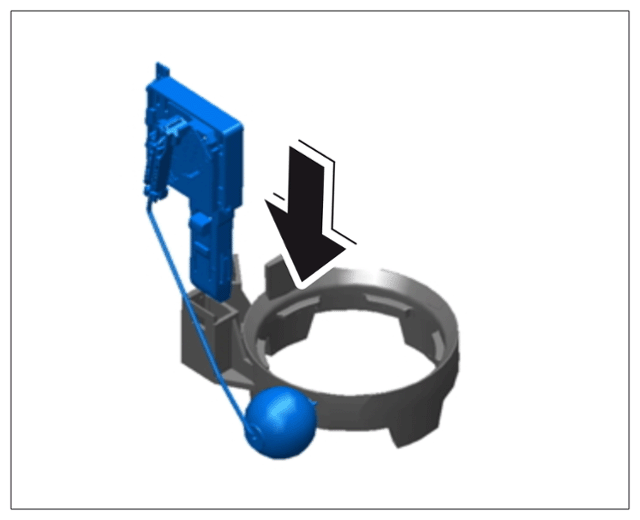

    Right fuel level sensor

  2. Install fuel pump.

    > 206619 Removing and installing fuel pump - section on "INSTALLING "

  3. Fit a new seal in the opening of the tank at the left and right. > Seal
    G16309128Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seal

  4. Pull the fuel line on the pressure regulator through the fuel tank to the left connection unit using the attached piece of wire or similar item.
  5. Clip in the fuel line -3-  on the left connection unit.
    G16309129Courtesy of PORSCHE CARS NORTH AMERICA, INC.

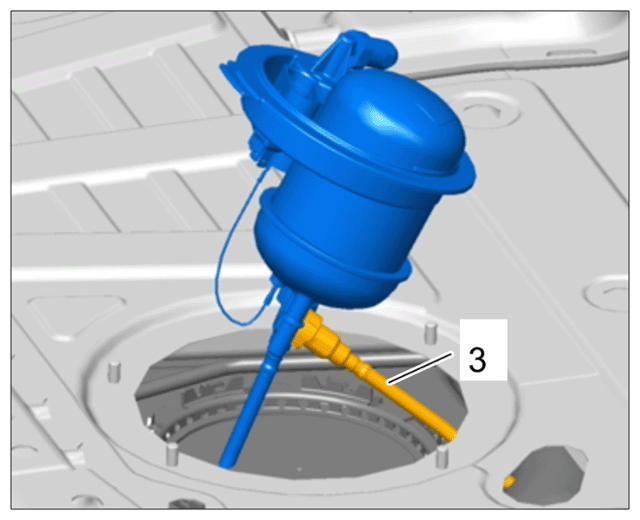

    Fuel line on left connection unit

  6. Connect all connections on the underside of the right connection unit.
  7. Fit the right connection unit with the pressure regulator in the tank. When doing so, make sure that the plastic lugs are pointing forward.

    Left fuel level sensor

  8. Install a new fuel level sensor. Press the sensor into its mounting. The retaining spring must lock with an audible click.
    G16309130Courtesy of PORSCHE CARS NORTH AMERICA, INC.

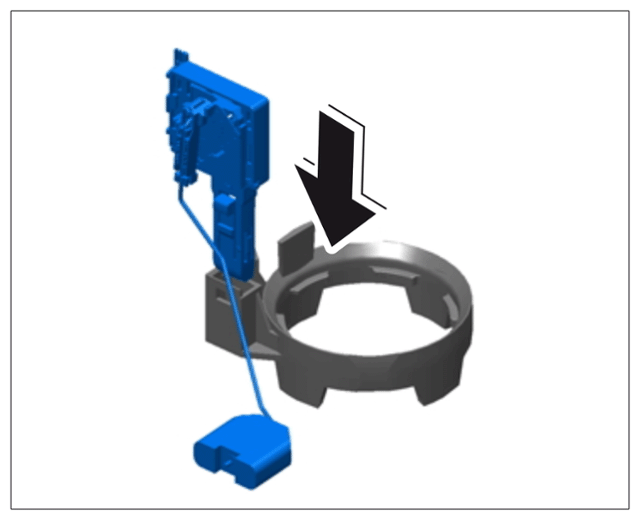

    Left fuel level sensor

  9. Fit the left connection unit with the fuel filter in the tank. When doing so, make sure that the plastic lugs are pointing forward.
  10. Fit new seals in the openings on the tank. > Seal for opening on tank
    G16309131Courtesy of PORSCHE CARS NORTH AMERICA, INC.

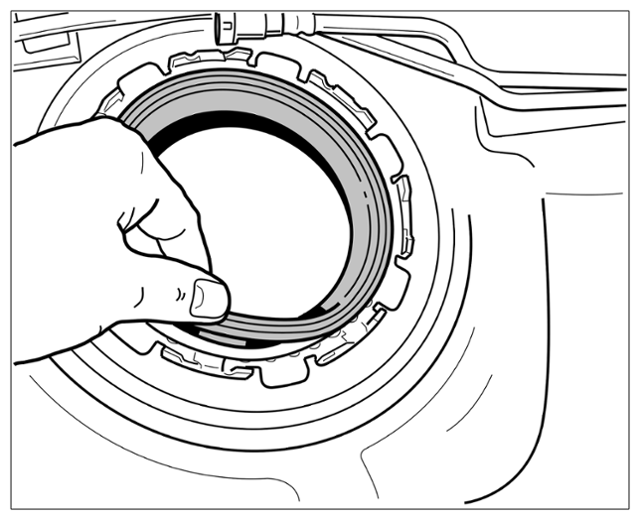

    Seal for opening on tank

  11. Connect both lines -2 and 3 -  to the left connection unit.
    G16309132Courtesy of PORSCHE CARS NORTH AMERICA, INC.

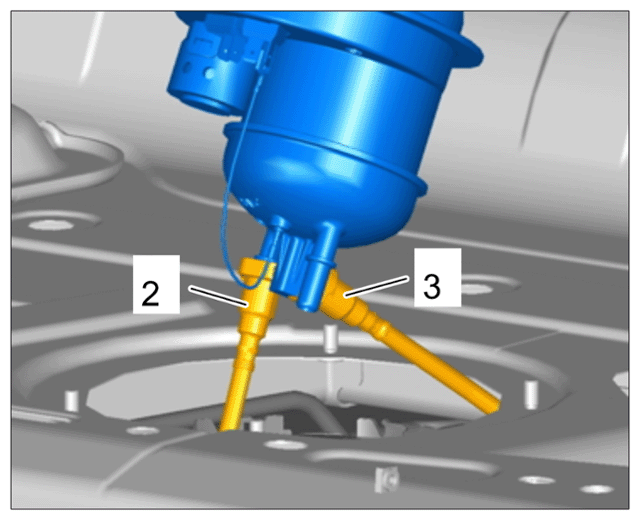

    Plugging in lines for fuel filter

  12. Plug in electric plug connection -1-  until it engages securely.
    G16309133Courtesy of PORSCHE CARS NORTH AMERICA, INC.

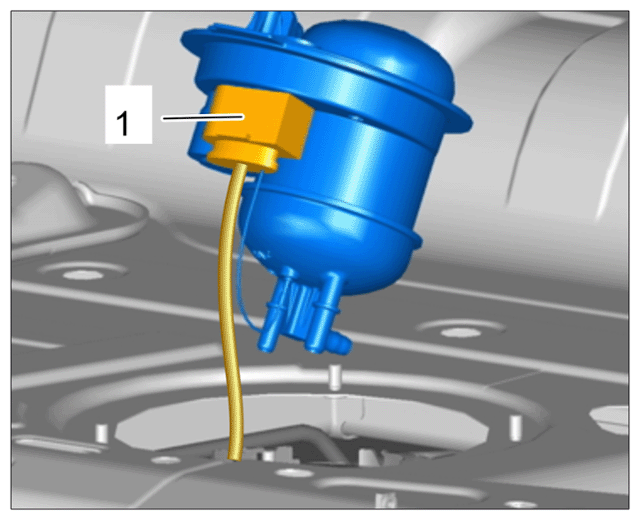

    Plugging in plug connection for fuel filter

  13. Fit the left connection unit with the fuel filter in the tank. When doing so, make sure that the plastic lugs are pointing forward.
