Installing Primary Catalytic Converter On Cylinder Bank 5-8

  1. Ensure sealing faces of exhaust system are clean.
  2. Replace flange gasket -4-  and slide it over the studs on the exhaust manifold -5-  .

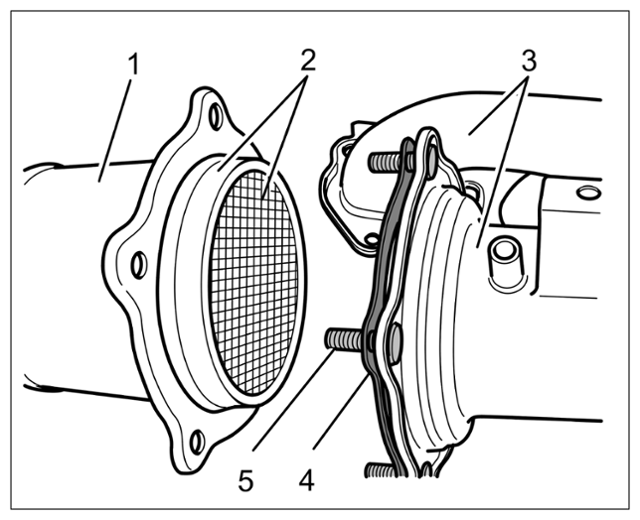

    G16309768Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ceramic monolith and flange gasket

    1 Primary catalytic converter
    2 Ceramic monolith
    3 Exhaust manifold
    4 Seal
    5 Studs in exhaust manifold
    NOTE: Projecting ceramic catalytic converter
    • Risk of damage to ceramic catalytic converter

      → Ensure that your work area is well illuminated.

      → Carefully guide the projecting ceramic catalytic converter past the studs on the exhaust manifold.

      → Cover and store the ceramic monolith for the primary catalytic converter in a safe place until you are ready to install it.

      Protect the ceramic monolith from damage while you are working on the primary catalytic converter. If

      → there are deep cracks or large chips, replace the primary catalytic converter. Slight superficial damage will not impair its function.

  3. Carefully move primary catalytic converter into installation position.
  4. Fit new fastening nuts between the exhaust manifold and primary catalytic converter, but leave them loose.
  5. Make sure that the sheetmetal holder for the primary catalytic converter fits correctly on the exhaust manifold after you tighten the nuts -8-  .

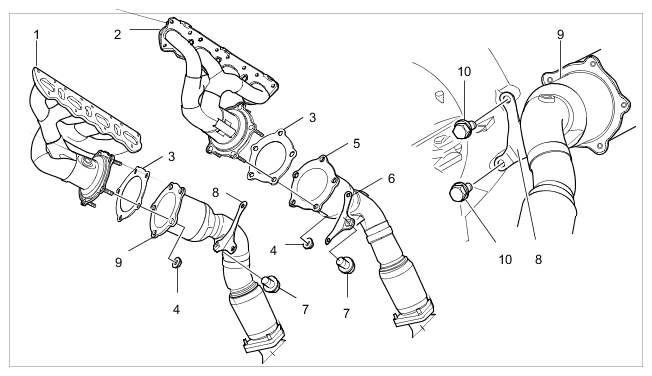

    Fig 1: Holder For Catalytic Converter Components Location - Naturally Aspirated Engine
    G16309769Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for catalytic converter - naturally aspirated engine

    1 Exhaust manifold, right
    2 Exhaust manifold, left
    3 Seal
    4 Nut
    5 Primary catalytic converter, left
    6 Holder, left
    7 Screw
    8 Holder, right
    9 Primary catalytic converter, right
    10 Bolts between transmission and engine (holder)
  6. Fit fastening screw on catalytic converter holder and nuts to the specified tightening torque and according to the specified tightening sequence > Flange bolts securing primary catalytic converter to exhaust manifold  > Tightening torque 23 (17 ftlb.) Nm  > Tightening torque 23 (17 ftlb.) Nm  . For details of tightening torque for transmission screws, see Removing and installing transmission or Removing and mounting transmission.

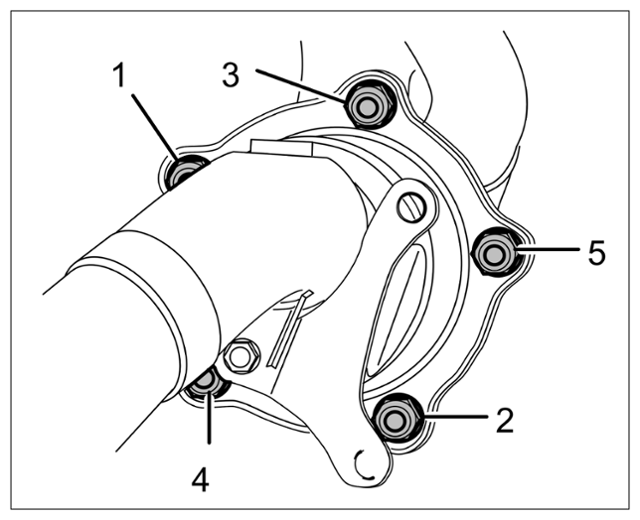

    Fig 2: Flange Bolts Tightening Sequence
    G16309770Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Flange bolts securing primary catalytic converter to exhaust manifold

    1 to 5 Tightening sequence for nuts
    WARNING: Cables not fitted or removed correctly
    • Risk of burns
    • Risk of short circuit or fire.

      → Check for correct fitting.

      → Replace damaged components.

  7. Lay oxygen sensor cable and clip it in. -1-

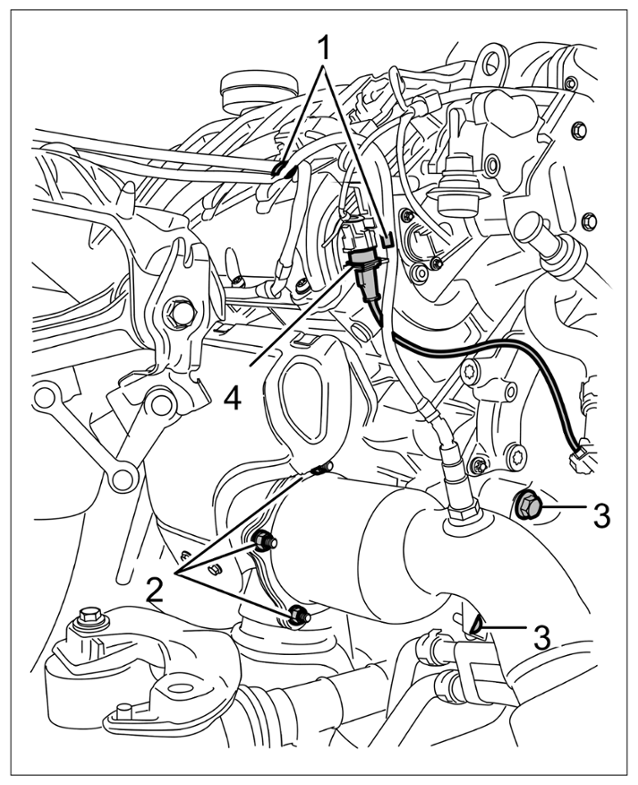

    G16309771Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Catalytic converter on naturally aspirated engine (figure shows cylinders 5 to 8)

  8. Fit heat shield on the cardan joint of the steering column. -arrows-  > Tightening torque 10 (7.5 ftlb.) Nm

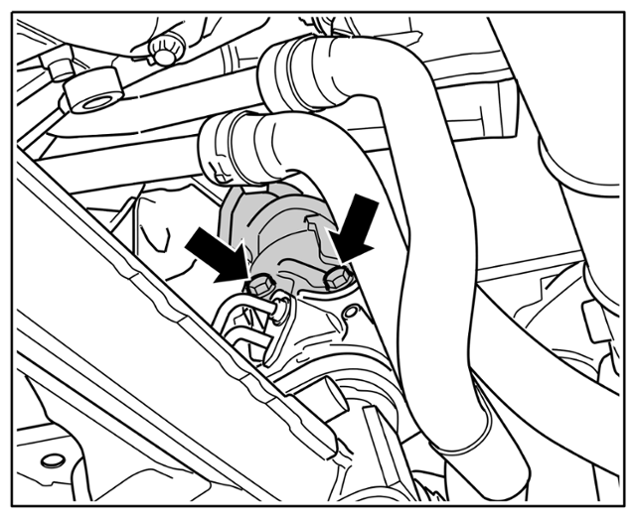

    G16309772Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on steering gear

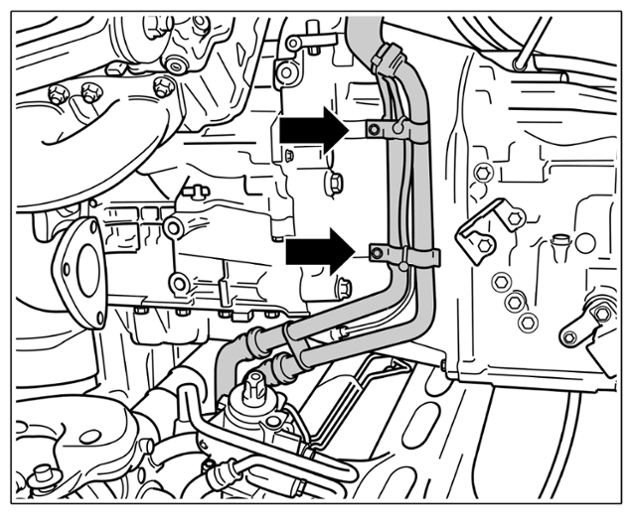

  9. Fit coolant pipe on converter bell housing -arrow-  . > Tightening torque 9 (6.5 ftlb.) Nm
    G16309773Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant pipes on converter bell housing

  10. Plug in the connector for the oxygen sensor behind the catalytic converter at the water splash panel.


Information

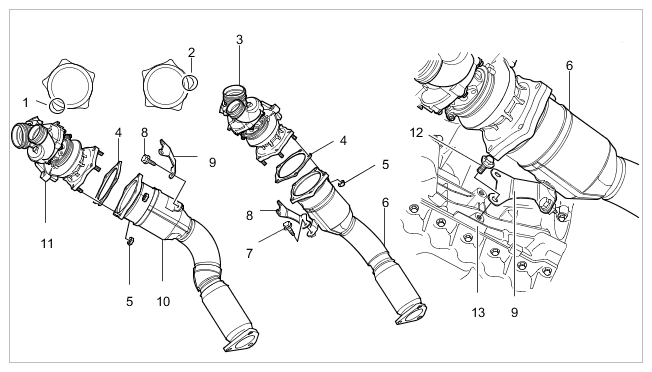

Fig 1: Holder For Catalytic Converter Components Location - Turbo Engine
G16309789Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for catalytic converter - turbo engine

1 Positioning lug on left side, viewed in direction of travel
2 Positioning lug on right side, viewed in direction of travel
3 Turbocharger, left
4 Seal
5 Nut
6 Primary catalytic converter, left
7 Screw
8 Sheetmetal holder (support)
9 Sheetmetal holder (support)
10 Primary catalytic converter, right
11 Turbocharger, right
12 Screw
13 Mounting point on crankcase
  1. Replace flange gasket and push over the studs of the turbocharger.

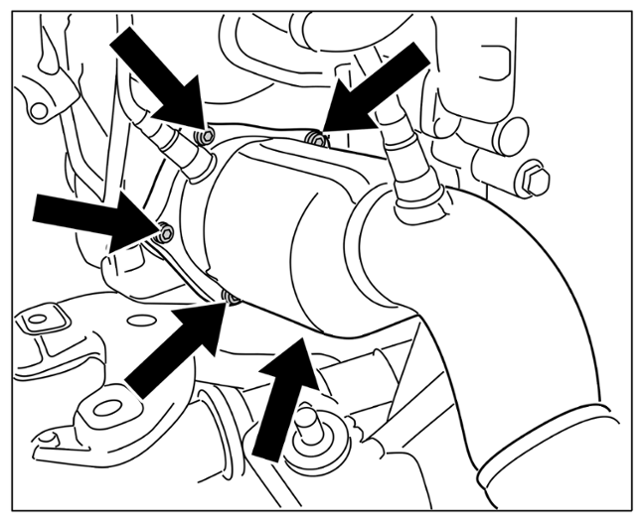

  2. Position the primary catalytic converter on the bolts on the turbocharger. To do this, carefully turn and pull the primary catalytic converter. Move the steering if necessary and move the primary catalytic converter into installation position.
    G16309790Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Placing primary catalytic converter on the studs of the turbocharger

  3. Fit side catalytic converter holders.
  4. Position new self-locking nuts at the connection points of the catalytic converter and tighten to the specified tightening torque. > Tightening torque 23 (17 ftlb.) Nm
  5. Tighten side catalytic converter holders to the specified tightening torque > Tightening torque 23 (17 ftlb.) Nm  . For details of transmission flange screws, see > 373519 REMOVING AND INSTALLING TRANSMISSION
  6. Fit the heat shield on the steering gear connection. To do this, fit the fastening screws. > Tightening torque 10 (7.5 ftlb.) Nm
    G16309791Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws securing heat shield to steering gear connection

    WARNING: Cables not fitted or removed correctly
    • Risk of burns
    • Risk of short circuit or fire.

      → Check for correct fitting.

      → Replace damaged components.

  7. Route oxygen sensor cables upwards so that the oxygen sensor cables are not touching the exhaust manifold or the exhaust system and clip them into position -1-  . A useful aid here is a piece of wire with a hook.

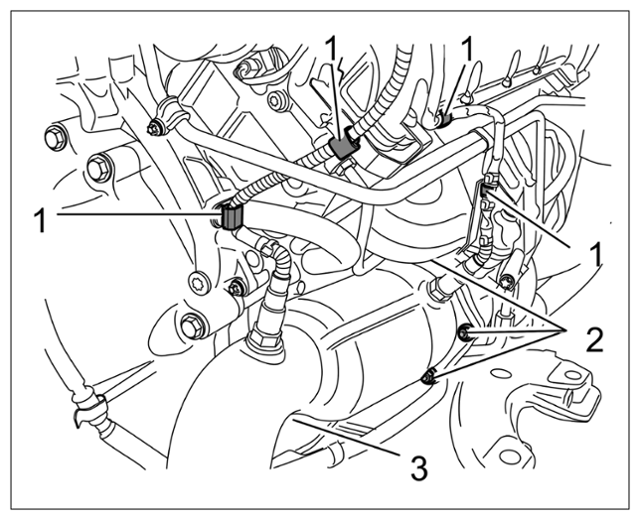

    G16309792Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Catalytic converter on turbo engine (figure shows cylinders 1 to 4)

  8. Connect the oxygen sensor connectors for the oxygen sensors at the water splash panel and clip the cables into the holders. > Oxygen sensor connectors (figure shows cylinders 1 to 4)
G16309793Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oxygen sensor connectors (figure shows cylinders 1 to 4)
