Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Type	Basic val...	Toleranc...
Main catalytic converter to primary catalytic converter	Tightening torque	23 (17 ftlb.) Nm

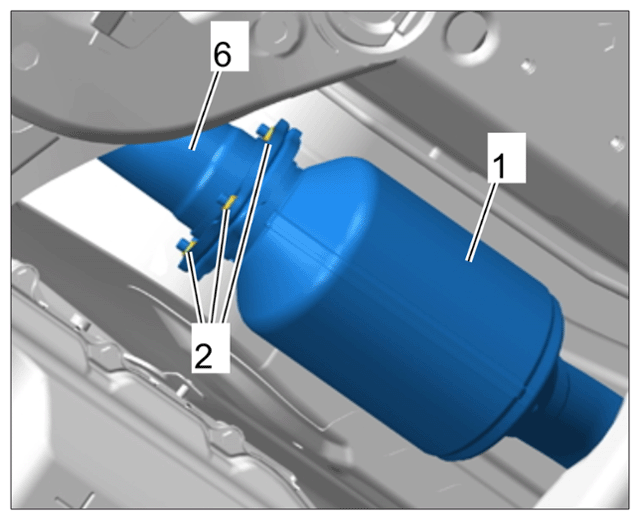

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening threaded joint for primary catalytic converter
Main catalytic converter to transmission bracket	Tightening torque	23 (17 ftlb.) Nm

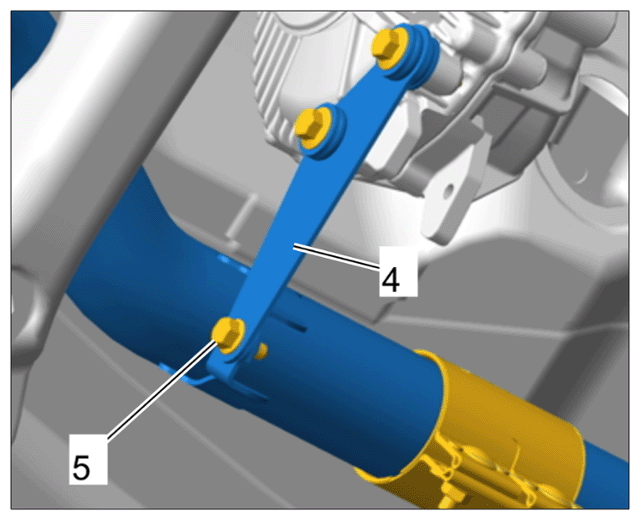

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening mounting on transmission bracket
Exhaust clamp	Maximum inclination	Adjustment value	10°
Exhaust clamp	M8; replace; tighten evenly	Tightening torque	33 (24 ftlb.) Nm

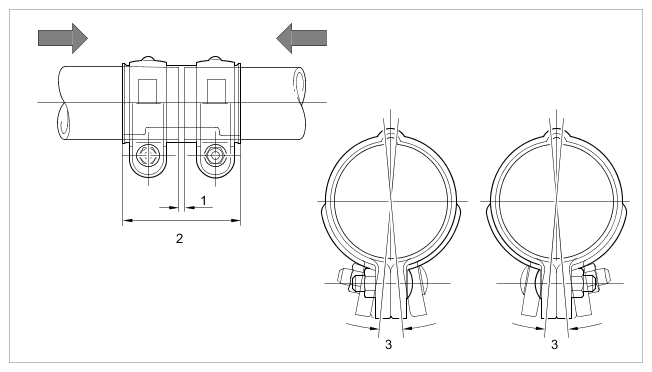

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installation position of exhaust clamp
