Removing Secondary Air Valve

1. Disconnect secondary-air hoses and pipe.
   Fig 1: Secondary-Air Hoses Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Secondary-air hoses

   1	Secondary-air pipe
   2	Holder with clamp
   3	Clamp

2. Detach secondary air valve connections.
3. Remove screw -2-  and carefully pull the secondary air valve -1 or 3-  out of the cylinder head.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

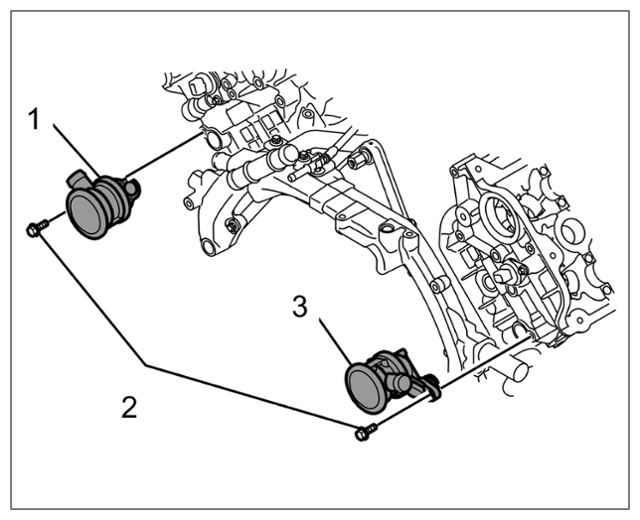

Installation position of secondary air valves
