Component Overview

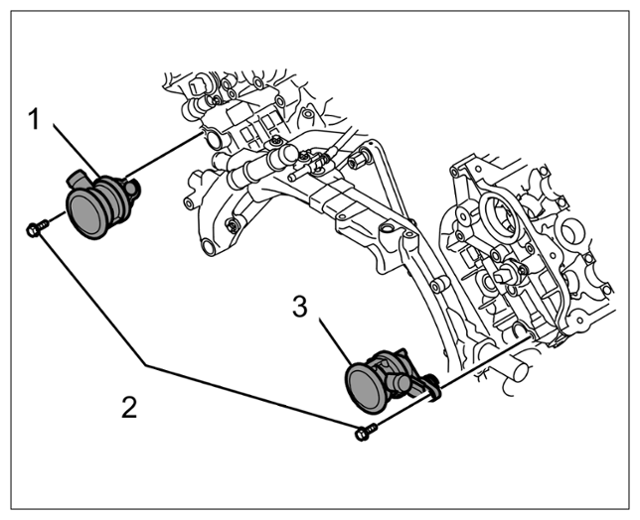

Fig 1: Secondary Air Valves Components Location

G16309734

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of secondary air valves

1	Secondary air valve, cylinder bank 5 to 8
2	M6 screw
3	Secondary air valve, cylinder bank 1 to 4

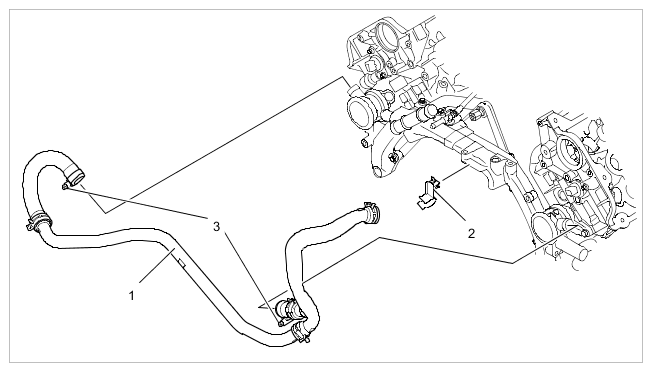

Fig 2: Secondary-Air Hoses Components Location

G16309735

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Secondary-air hoses

1	Secondary-air pipe
2	Holder with clamp
3	Clamp
