Removing Secondary-Air Pump

  1. Release electric plug connection -A-  and pull it off -A-  .
    G16309731Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting connector for secondary-air pump

  2. Loosen screw-type clamp -1-  on secondary-air pump and pull off the hose.

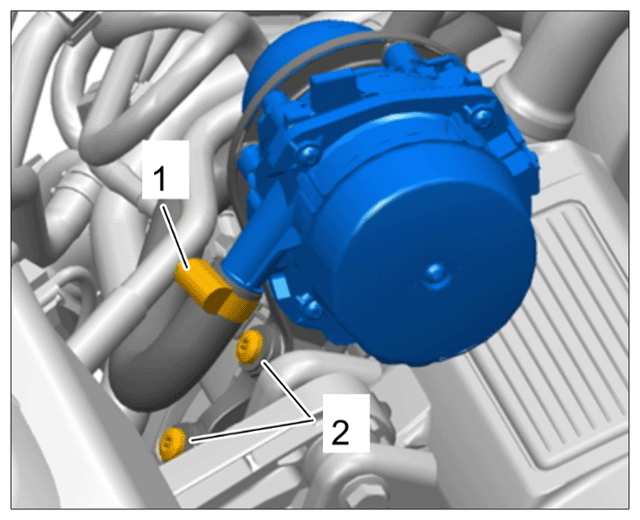

    G16309732Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing secondary-air pump

  3. Unscrew fastening screws -2-  on the secondary-air pump bracket.
