Technical Values: Tailpipes

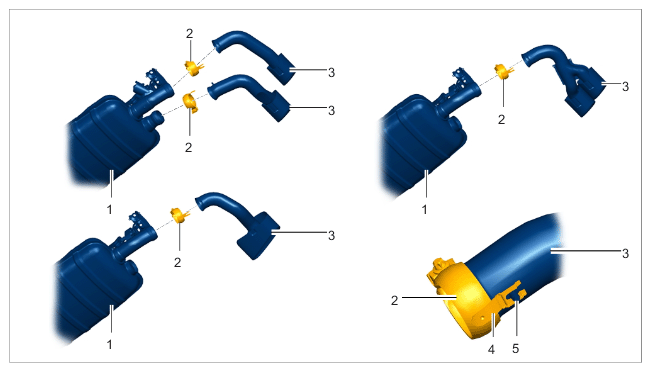

Fig 1: Tailpipes Components Location With Torque Specifcation

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailpipes

1	Rear silencer
2	Ball clamp > Tightening torque 35 (26 ftlb.) Nm
3	Tailpipe(s)
4	Pre-positioner
5	Pin

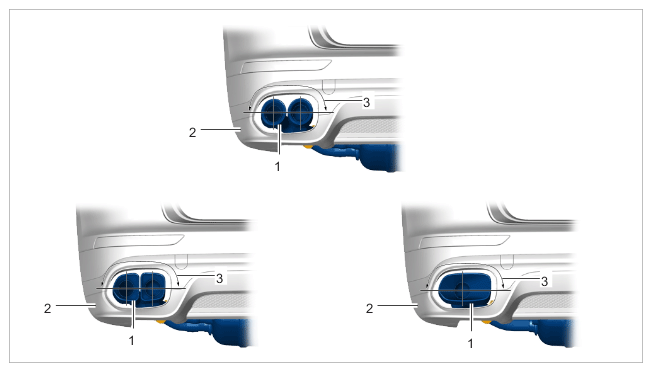

Adjusting tailpipe:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting tailpipes

1	Tailpipe(s)
2	Bumper
3	Gap specification > Gap dimension 18 mm
