Installing Tailpipes

  1. Clean extension positions and replace ball clamp if necessary, depending on its condition.
  2. Move tailpipe into installation position and align it.

    > 263415 ADJUSTING TAILPIPE

  3. Tighten fastening screw on ball clamp to > Tightening torque 35 (26 ftlb.) Nm  .

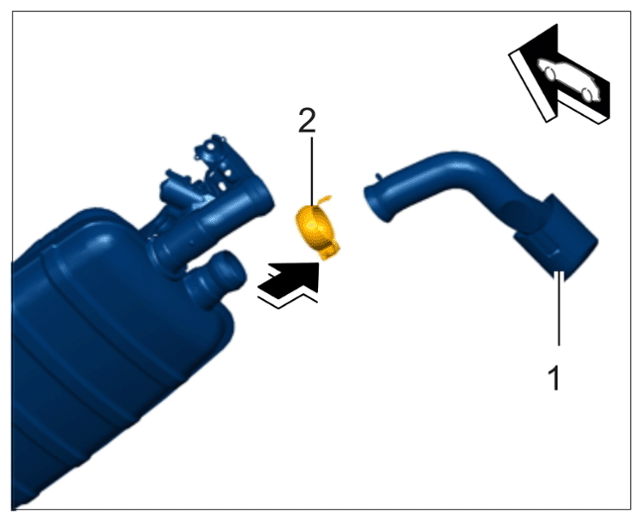

G16309728Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailpipe mounting
