TEQ, 2634 Sports Tailpipe (I-No. 0P3/0P6): Parts

Part number	Des...	Addition/Scope	Quantity
> 95804420017	Sports tailpipe, silver, set for Cayenne (3.6 l), Cayenne Diesel, Cayenne (3.0 l)	Satz fur Cayenne (3.6 L), Cayenne Diesel, Cayenne (3.0 L)	1
> 95804420018	Sports tailpipe, black, set for Cayenne (3.6 l), Cayenne Diesel, Cayenne (3.0 l)	Satz fur Cayenne (3.6 L), Cayenne Diesel, Cayenne (3.0 L)	1
> 95804420019	Sports tailpipe, silver, set for Cayenne S, Cayenne S Diesel, Cayenne Turbo, Cayenne S E-Hybrid	Cayenne S, Cayenne S-Diesel, Cayenne Turbo, Cayenne S E-Hybrid	1
> 95804420020	Sports tailpipe, black, set for Cayenne S, Cayenne S Diesel, Cayenne Turbo, Cayenne S E-Hybrid	Satz fur Cayenne S, Cayenne S-Diesel, Cayenne Turbo, Cayenne S E-Hybrid	1

Model year

From 2015

Concern:

Retrofitting

Notes:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

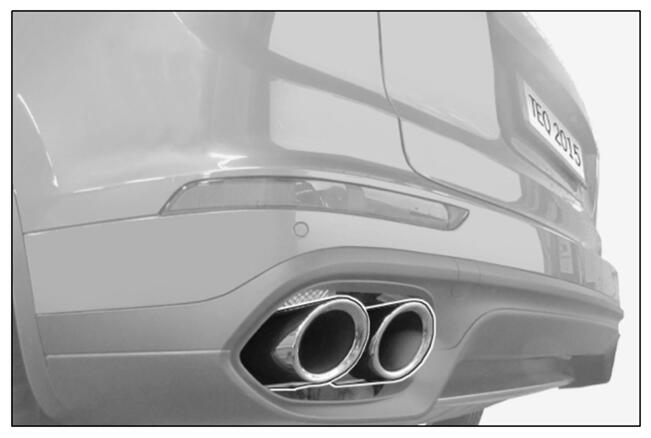

The standard tailpipes for the exhaust system can be replaced with sports tailpipes on the Cayenne.

The sports tailpipes in silver (I-no. 0P3) and black (I-no. 0P6) can be retrofitted worldwide and are also available as a factory installed option for new vehicles.

Parts Info:

958.044.200.17⁽¹⁾

> Sports tailpipe, silver, set for Cayenne (3.6 l), Cayenne Diesel, Cayenne (3.0 l)

958.044.200.18⁽¹⁾

> Sports tailpipe, black, set for Cayenne (3.6 l), Cayenne Diesel, Cayenne (3.0 l)

958.044.200.19

> Sports tailpipe, silver, set for Cayenne S, Cayenne S Diesel, Cayenne Turbo, Cayenne S E Hybrid

958.044.200.20

> Sports tailpipe, black, set for Cayenne S, Cayenne S Diesel, Cayenne Turbo, Cayenne S E Hybrid

⁽¹⁾	Not together with sports exhaust system (I-no. 0P8/0P9).

Parts List:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

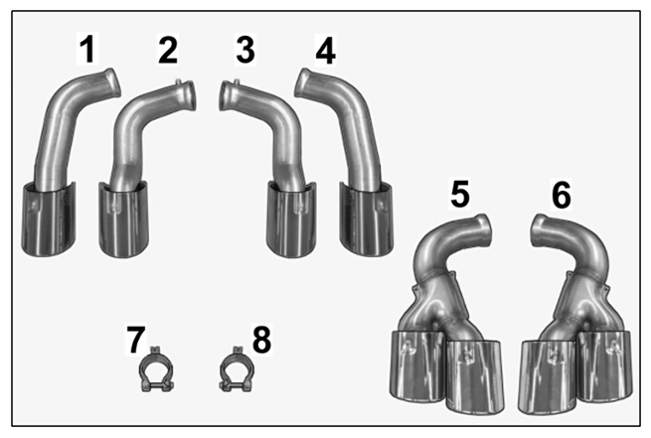

Contained in set 958.044.200.20 Sports tailpipe for Cayenne S, Cayenne S Diesel, Cayenne Turbo, Cayenne S E-Hybrid
958.111.251.62	1 x	Sports tailpipe, outer left (7P5.253.681.AS) -1-
958.111.251.52	1 x	Sports tailpipe, inner left (7P5.253.681.AR) -2-
958.111.252.52	1 x	Sports tailpipe, inner right (7P5.253.682.AR) -3-
958.111.252.62	1 x	Sports tailpipe, outer right (7P5.253.682.AS) -4-
955.111.108.50	2 x	Clamp -7-
955.111.108.70	2 x	Clamp -8-
Contained in set 958.044.200.17 Sports tailpipe for Cayenne (3.6 l), Cayenne Diesel, Cayenne (3.0 l)
958.111.251.13	2 x	Sports tailpipe, left, silver (7P5.253.681.BB) -5-
958.111.252.13	2 x	Sports tailpipe, right, silver (7P5.253.682.BB) -6-
955.111.108.50	1 x	Clamp -7-
955.111.108.70	1 x	Clamp -8-
Contained in set 958.044.200.19 Sports tailpipe for Cayenne S, Cayenne S Diesel, Cayenne Turbo, Cayenne S E-Hybrid
958.111.251.51	1 x	Sports tailpipe, inner left (7P5.253.681.AT), (not shown)
958.111.252.51	1 x	Sports tailpipe, inner right (7P5.253.682.AT), (not shown)
958.111.251.61	1 x	Sports tailpipe, outer left (7P5.253.681.BA), (not shown)
958.111.252.61	1 x	Sports tailpipe, outer right (7P5.253.682.BA), (not shown)
955.111.108.50	2 x	Clamp -7-
955.111.108.70	2 x	Clamp -8-
Contained in set 958.044.200.18 Sports tailpipe for Cayenne (3.6 l), Cayenne Diesel, Cayenne (3.0 l)
958.111.251.12	2 x	Sports tailpipe, left, black (7P5.253.681.BC), (not shown)
958.111.252.12	2 x	Sports tailpipe, right, black (7P5.253.682.BC), (not shown)
955.111.108.50	1 x	Clamp -7-
955.111.108.70	1 x	Clamp -8-

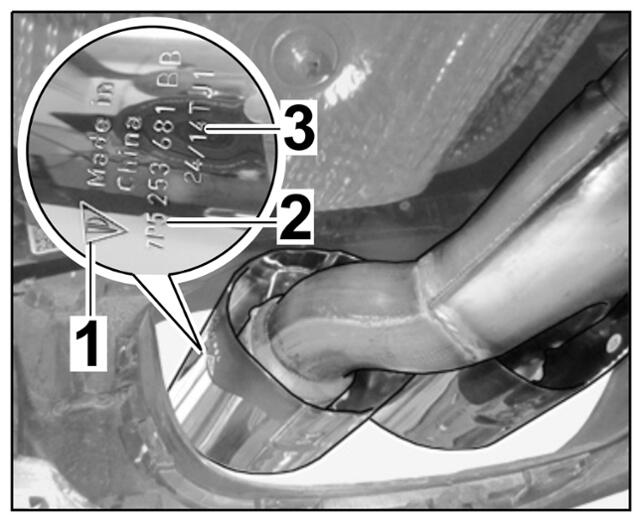

NOTE: The Porsche logo, part number and week/year of manufacture are shown on the sports tailpipes.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Porsche logo
2	Part No.
3	Week/year of manufacture

Information

Please inform the customer of this accordingly.

Work Procedure:

Convert sports tailpipes.
> 263419 REMOVING AND INSTALLING TAILPIPE

26342000:

Removing and installing tailpipe (2 ea.); Labor time 43 TU

Includes

Cayenne (3.6 l), Cayenne Diesel, Cayenne (3.0 l)

26342030:

Removing and installing tailpipe (4 ea.); Labor time 62 TU

Includes

Cayenne S, Cayenne S Diesel, Cayenne Turbo, Cayenne S E-Hybrid
