Installing Clutch Pedal

Installation is performed in reverse order.

1. When the clutch pedal locks into place, the lugs on the left and right must engage with an audible click. To do this, push the clutch pedal firmly onto the mounting in direction of travel. -item 10-  Now turn the pedal to the left and right (2 x click). > Locking clutch pedal into place

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

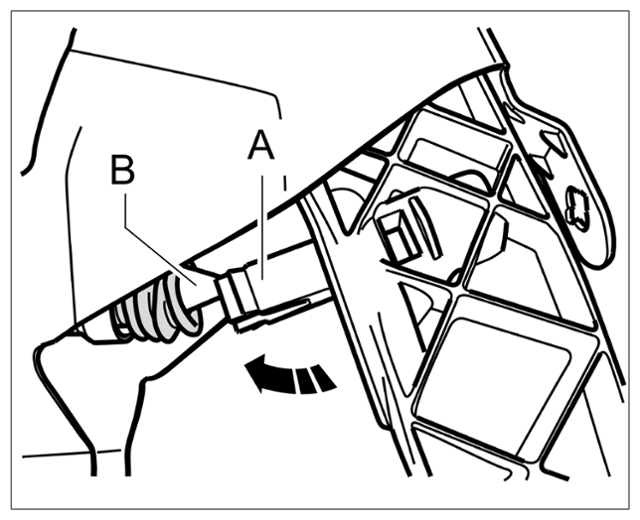

   Locking clutch pedal into place

2. Insert clutch power spring. > Clutch power spring  Push in the bolt at the correct position so that the hexagon cannot turn. The lock must be pushed into the groove by the bolt.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

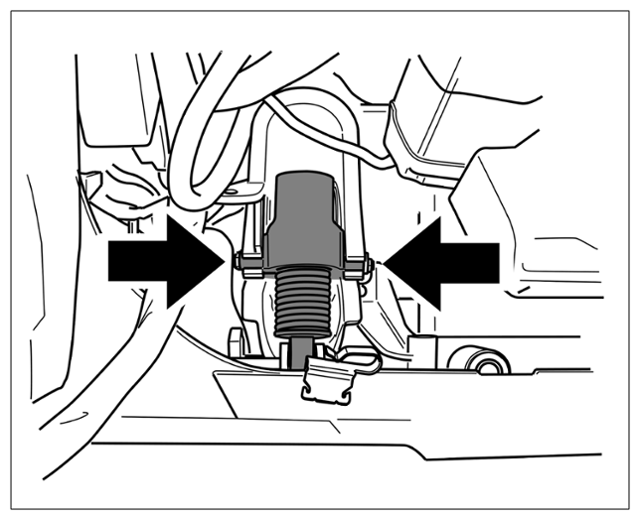

   Clutch power spring

3. Press the clutch pedal and then swivel the clutch power spring 180° to the front and insert it into the bearing. -arrows-  Remove cuter pin.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

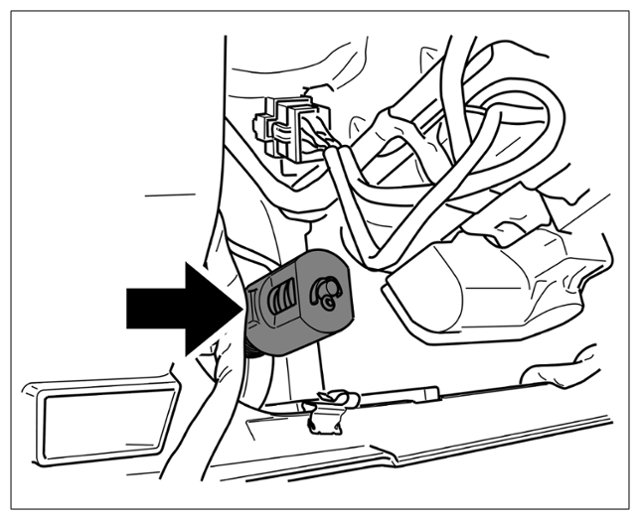

   Clutch power spring mount
