Preliminary Work

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
- Secure components to prevent them from falling down.

Information

Get one or more people to help when installing/removing heavy or difficult-to-reach components.
This will prevent or reduce the risk of possible damage.

Information

Spray corroded nuts and screws with rust solvent or heat using a hot-air gun before removal.

Move selector lever to position -N- .
Disconnect ground contact for the battery under the driver's seat.
Remove engine compartment trim panel at tie left.
> WM 700219 REMOVING AND INSTALLING FRONT TRIM PANEL (ENGINE COMPARTMENT) (CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0))
Disconnect plug connection -1- for left oxygen sensor from the holder in the engine compartment and expose wire harness.
1. 4.1 Disconnect plug connection for oxygen sensor for primary catalytic converter.
2. 4.2 Unclip wire harness -arrows- and open out the lower holder at the top.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection for oxygen sensors at left side of engine compartment
Remove engine guard.
> WM, 108019 REMOVING AND INSTALLING ENGINE GUARD
Loosen the rear cardan shaft -1- at the transfer gear and secure it with a tie-wrap -2- to prevent it from becoming kinked.
> WM, 393519 REMOVING AND INSTALLING REAR CARDAN SHAFT

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

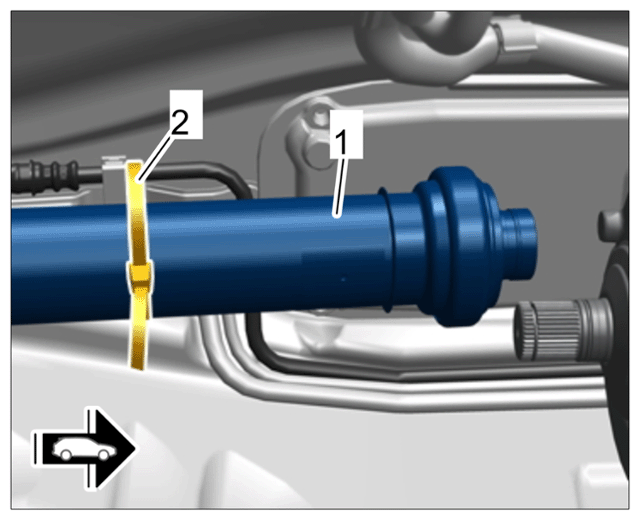

Securing cardan shaft with a tie-wrap
Remove front cardan shaft.
> WM, 390219 REMOVING AND INSTALLING FRONT CARDAN SHAFT
Remove left catalytic converter.
> 267319 REMOVING AND INSTALLING (MAIN) CATALYTIC CONVERTER
1. 8.1 Spray flange nuts with rust solvent and leave it to take effect or heat flange nuts using a hot-air gun if necessary.
2. 8.2 Screw off flange nuts.
3. 8.3 Remove catalytic converter.
4. 8.4 Replace seal and flange nuts.
Remove heat shield on the universal joint.
1. 9.1 Unscrew fastening screws -1- on the heat shield -2- .
2. 9.2 Remove heat shield.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

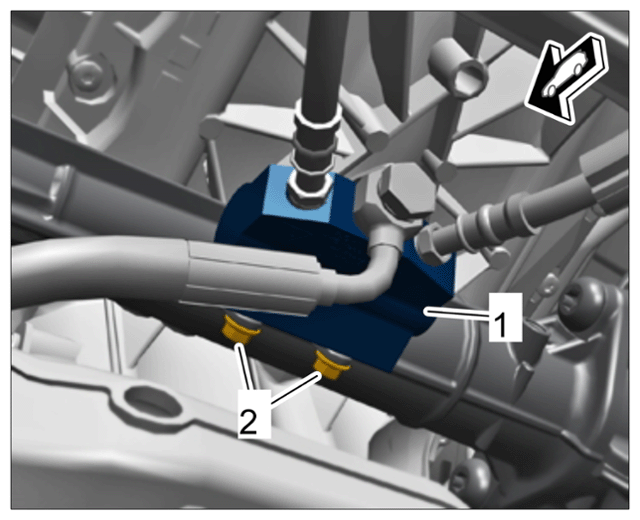

Heat shield on universal joint
Unscrew fastening screw -1- on holder -2- for primary catalytic converter at the left -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

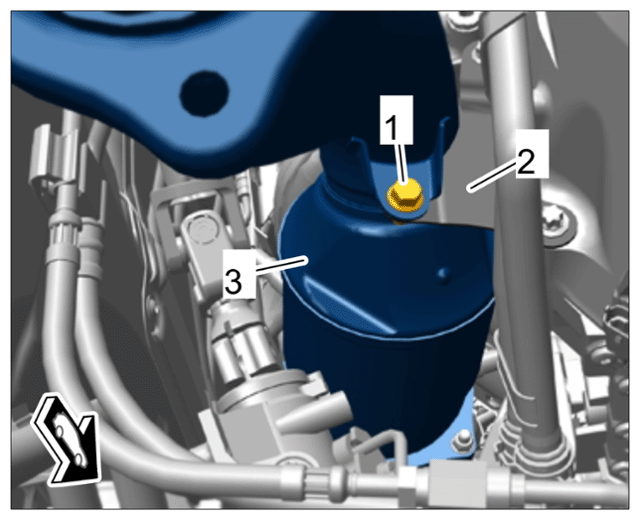

Holder for primary catalytic converter at the left

Loosen primary catalytic converter at the left -1- .

> WM, 267619 REMOVING AND INSTALLING PRIMARY CATALYTIC CONVERTER

11.1 Spray fastening nuts for the primary catalytic converter with rust solvent and leave it to take effect.

11.2 Unscrew fastening nuts (left-hand side only) and pull catalytic converter out of the threaded bolts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

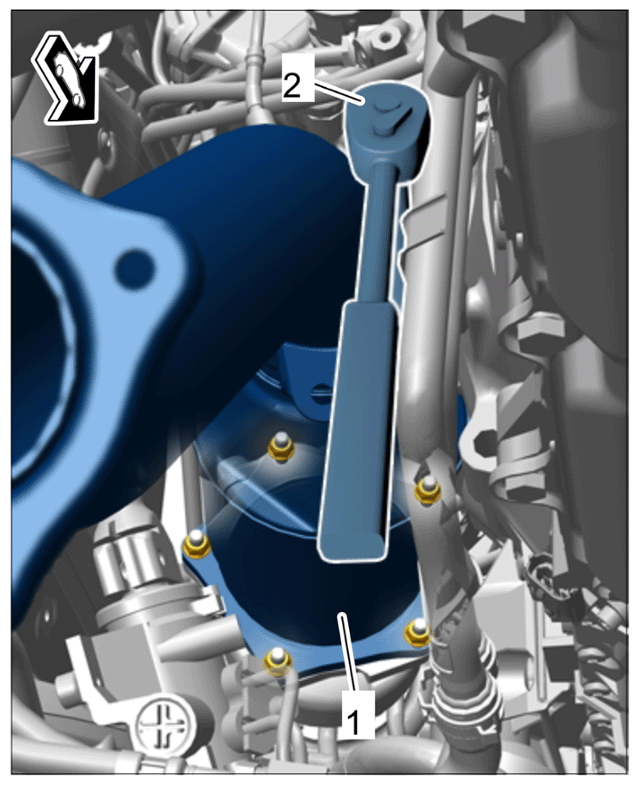

Threaded joint for primary catalytic converter

Remove oxygen sensor on primary catalytic converter at the left.
> 247319 REMOVING AND INSTALLING OXYGEN SENSORS DOWNSTREAM OF CATALYTIC CONVERTER
1. 12.1 Tip the primary catalytic converter -1- down.
2. 12.2 Loosen and unscrew oxygen sensor -2- using an open-ended wrench (a/f 22) -3- .
3. 12.3 Remove primary catalytic converter and oxygen sensor.
4. 12.4 Replace seal and lock nuts.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

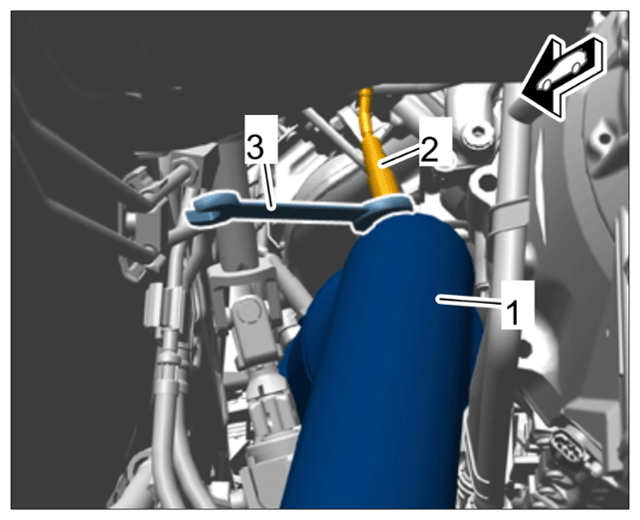

Loosening oxygen sensor
Release electric plug connections -1 and 2- at the right of the transfer gear -a, b- and disconnect them -A, B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

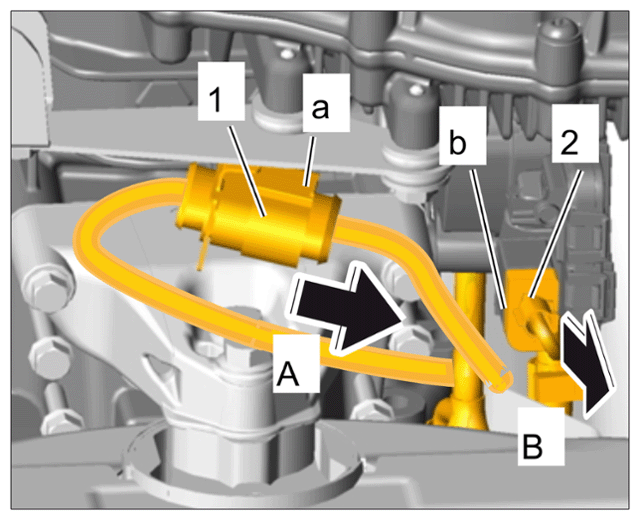

Plug connections for transfer gear at the right
Release electric plug connections -1 and 2- at the bottom of the transfer gear -a, b- and disconnect them -A,_B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

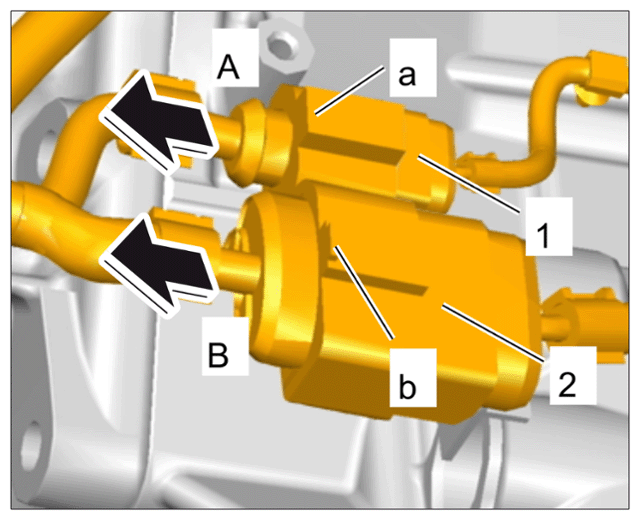

Plug connections for transfer gear at the bottom
Remove transmission cross member.
1. 15.1 Unscrew M10 fastening screws -B- on the transmission mount.
2. 15.2 Unscrew M10 fastening screws -A- on the outer cross member and remove cross member.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

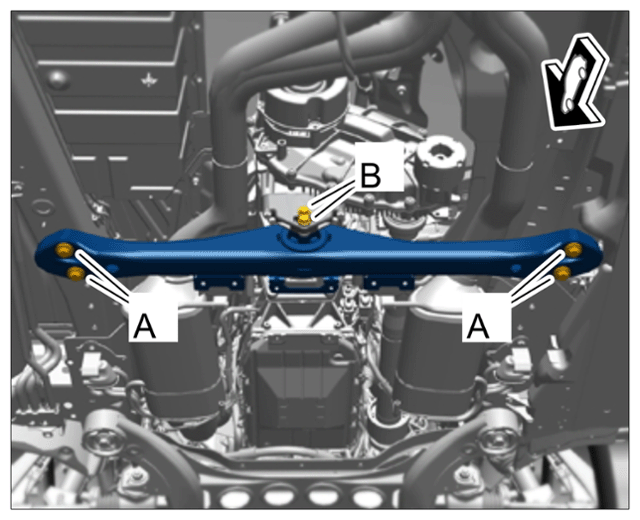

Fastening screws on transmission cross member
Remove transfer gear.
> WM, 396519 REMOVING AND INSTALLING TRANSFER BOX
